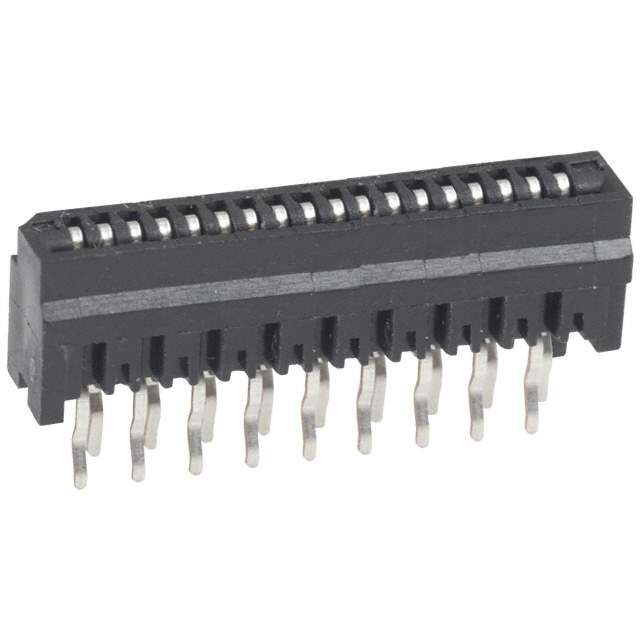

HLW18S-2C7LF Real Image
Same model may have multiple batches, images only for reference.

HLW18S-2C7LF

Part No HLW18S-2C7LF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC VERT 18POS 1MM PCB
Datasheet
HLW18S-2C7LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Tray
Status Active
Flat Flex Type FFC, FPC
Mounting Through Hole
Connector/Contact Type Contacts, Vertical, 1 Sided
Number of Positions 18
Pitch 0.039" (1.00mm)
Termination Kinked Pin
FFC, FCB Thickness 0.30mm
Height Above Board 0.232" (5.90mm)
Cable End Type Straight or Tapered
Contact Finish Tin
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Voltage Rating 100V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 1A
Housing Color Black
Mating Cycles 30
Win Source Part Number 1043573-HLW18S-2C7LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HLW18S-2C7LF CAD Model

Description

The Amphenol FCI 1043573-HLW18S-2C7LF is a connector with 18 positions.

  • Pitch: 0.039" (1.00mm)
  • Termination: kinked pin
  • Contact Finish: tin
  • Voltage Rating: 100V
  • Current Rating: 1A
  • Height Above Board: 0.232" (5.90mm)
  • Suitable for: FFC, FPC flat flex types
  • Housing Material: polybutylene terephthalate (PBT), glass filled
  • Material Flammability Rating: UL94 V-0
  • Supply and Demand Status: balanced
