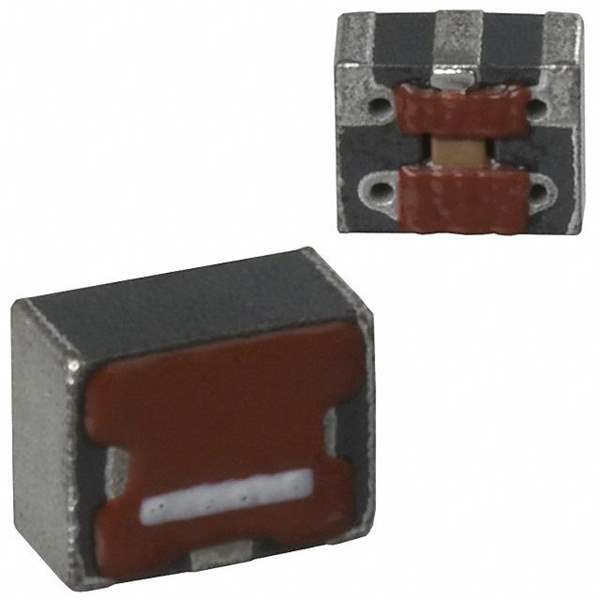

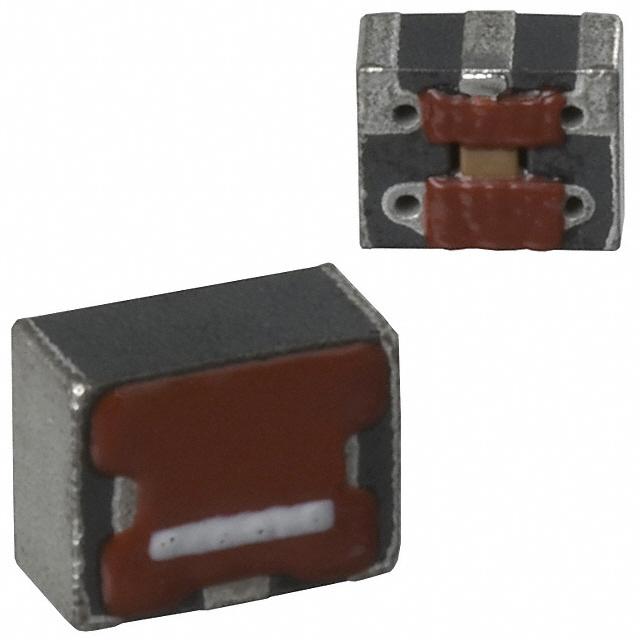

ACF321825-221-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACF321825-221-TD01

Part No ACF321825-221-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACF321825-221-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 170MHz to 250MHz
Resistance - Channel (Ohms) 0.15
Current 300mA
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 20V
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height 0.079" (2.00mm)
Win Source Part Number 007795-ACF321825-221-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACF321825-221-TD01 CAD Model

Description

ACF321825-221-TD01

The ACF321825-221-TD01 is engineered to deliver top-notch performance in both high and low-frequency applications. It is especially beneficial for applications where precise signal integrity is paramount.

  • Applications:
    • Consumer Electronics
    • Wireless Communication Equipment
    • Precision Instrumentation
  • Features and Benefits:
    • Superior frequency response ratio.
    • Effective in suppressing electromagnetic interference.
    • Durable construction for extended lifespan.
  • Additional Details:
    • Easy to mount and integrate into existing systems.
    • Cost-effective solution for high-frequency applications.
    • Meets stringent environmental standards.
