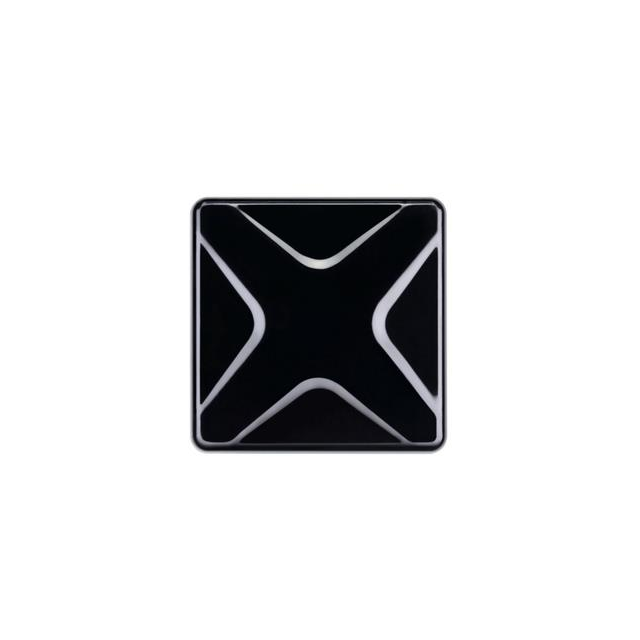

WCM.02.0121 Real Image
Same model may have multiple batches, images only for reference.

WCM.02.0121

Part No WCM.02.0121
Manufacturer Taoglas Limited
Catalog RF Antennas
Description 2.4GHZ TWO MONOPOLE CONNECTOR MO / 2.45GHz General Purpose Module RF Antenna 2.4GHz ~ 2.5GHz 1.68dBi SMA Female Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Box
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.45GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Module
Number of Bands 1
Return Loss -10dB
Gain 1.68dBi
Termination SMA Female
Ingress Protection IP67
Mounting SMD (SMT)
Height (Max) 0.264" (6.70mm)
Applications General Purpose
Base Product Number WCM.02
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names 931-WCM.02.0121
Standard Package 1
Win Source Part Number 1225268-WCM.02.0121
Ultra Librarian 3D Model Ultra Librarian WCM.02.0121 CAD Model

Description

The 1225268-WCM.02.0121 is a module type RF Antenna manufactured by Taoglas Limited.

  • Frequency Range: 2.4GHz ~ 2.5GHz
  • Frequency (center/band): 2.45GHz
  • Termination: SMA female
  • Mounting: SMD (SMT)
  • IP Rating: IP67
  • Return Loss: -10dB
  • Height: 0.264" (6.70mm)
  • Gain: 1.68dBi
  • Application: General-purpose
  • Standard Package: 1
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8529.10.9100
