Same model may have multiple batches, images only for reference.

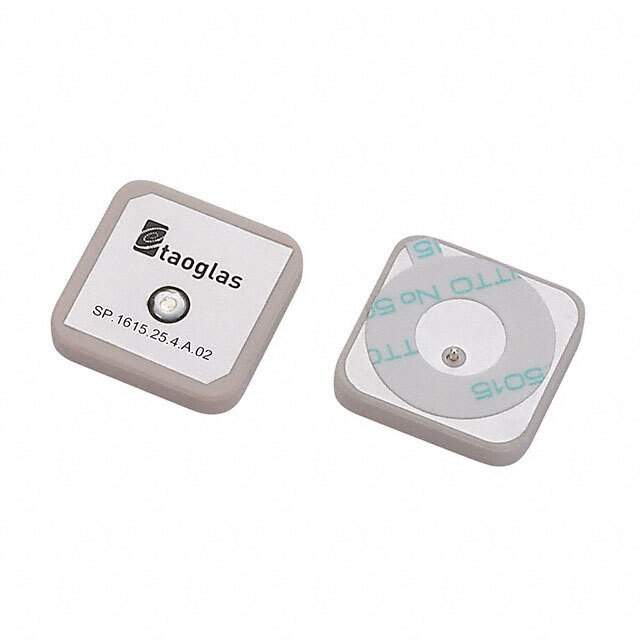

SP.1615.25.4.A.02 Real Image
Same model may have multiple batches, images only for reference.

SP.1615.25.4.A.02

Part No SP.1615.25.4.A.02
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 1.615GHZ CER PATCH 25MM / 1.615GHz Globalstar Ceramic Patch RF Antenna 1.602GHz ~ 1.628GHz 4dBi Pin Adhesive
Datasheet
SP.1615.25.4.A.02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Series Globalstar
Package Tray
RF Family/Standard Cellular, Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.615GHz
Frequency Range 1.602GHz ~ 1.628GHz
Antenna Type Ceramic Patch
Number of Bands 1
VSWR 1.5
Return Loss -10dB
Gain 4dBi
Termination Pin
Mounting Type Adhesive
Height (Max) 0.197" (5.00mm)
Applications Globalstar
Base Product Number SP.1615
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names SP1615254A02,931-1362,2266-SP.1615.25.4.A.02
Standard Package 200
Win Source Part Number 1213471-SP.1615.25.4.A.02
Ultra Librarian 3D Model Ultra Librarian SP.1615.25.4.A.02 CAD Model

Description

The SP.1615.25.4.A.02 is a ceramic patch antenna from Taoglas Limited.

  • Series: Globalstar
  • Application: Globalstar
  • Frequency Range: 1.602GHz to 1.628GHz
  • Frequency: 1.615GHz
  • Gain: 4dBi
  • VSWR: 1.5
  • Return Loss: -10dB
  • Antenna Type: UHF
  • Frequency Group: 1GHz to 2GHz
  • Mounting: Adhesive
  • Termination: Pin
  • Package: Tray
  • Standard Package: 200 units
  • Ingress Protection: N/A
