Same model may have multiple batches, images only for reference.

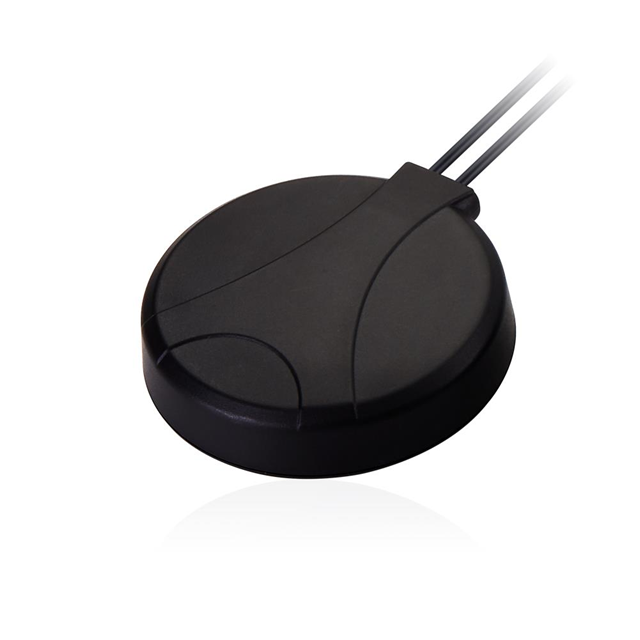

MA310.A.LB.001 Real Image
Same model may have multiple batches, images only for reference.

MA310.A.LB.001

Part No MA310.A.LB.001
Manufacturer Taoglas Limited
Catalog RF Antennas
Description MAGNET MOUNT GPS/GLONASS-SMA(M) / 761MHz, 859MHz, 920MHz, 1.57542GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz CDMA, DCS, EDGE, GSM, GPRS, HSPA, PCS, UMTS, WCDMA Dome RF Antenna 698MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.601GHz ~ 1.603GHz, 1.71GHz ~ 2.69GHz -6.31dBi, -3.54dBi, -3.71dBi, 1dBic, -5.93dBi, -5.51dBi, -5.51dBi, -6.69dBi SMA Male Magnetic
Datasheet
MA310.A.LB.001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Bag
RF Family/Standard Cellular
Frequency Group Wide Band
Frequency (Center/Band) 761MHz, 859MHz, 920MHz, 1.57542GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz
Frequency Range 698MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.601GHz ~ 1.603GHz, 1.71GHz ~ 2.69GHz
Antenna Type Dome
Number of Bands 9
Return Loss -3dB, -10dB
Gain -6.31dBi, -3.54dBi, -3.71dBi, 1dBic, -5.93dBi, -5.51dBi, -5.51dBi, -6.69dBi
Features Cable - 3m, LNA
Termination SMA Male
Ingress Protection IP67
Mounting Type Magnetic
Height (Max) 0.906" (23.00mm)
Applications CDMA, DCS, EDGE, GSM, GPRS, HSPA, PCS, UMTS, WCDMA
Base Product Number MA310
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.9100
Other Names 931-1546
Standard Package 1
Win Source Part Number 1123749-MA310.A.LB.001
Ultra Librarian 3D Model Ultra Librarian MA310.A.LB.001 CAD Model

Description

The Taoglas Limited MA310 RF antenna is designed for CDMA, DCS, EDGE, GSM, GPRS, HSPA, PCS, UMTS, and WCDMA applications.

  • Frequency Range: 698MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.601GHz ~ 1.603GHz, and 1.71GHz ~ 2.69GHz
  • Antenna Type: Dome
  • Number of Bands: 9
  • Frequency Group: Wide
  • Gain: -6.31dBi, -3.54dBi, -3.71dBi, 1dBic, -5.93dBi, -5.51dBi, -5.51dBi, -6.69dBi
  • Termination: SMA Male
  • Cable: 3m
  • LNA: Yes
  • Mounting: Magnetic
  • Ingress Protection: IP67
  • Standard Package Quantity: 1
  • HTSUS Code: 8529.10.9100
