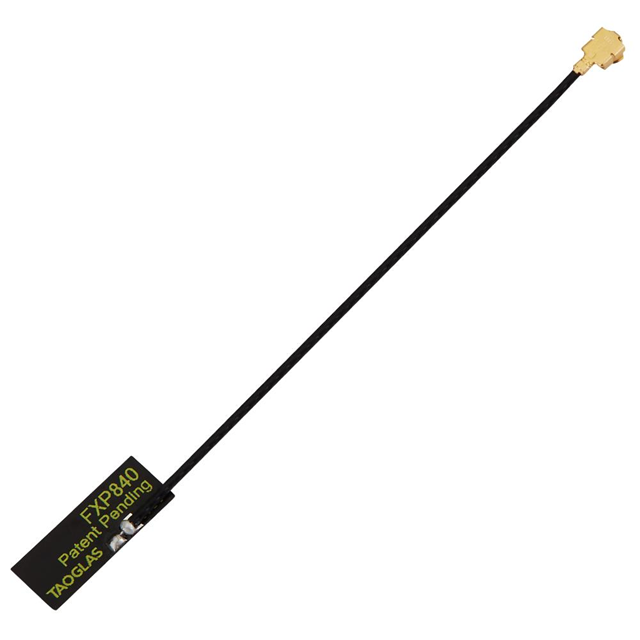

FXP840.07.0055B Real Image
Same model may have multiple batches, images only for reference.

FXP840.07.0055B

Part No FXP840.07.0055B
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 2.4GHZ/5.4GHZ FLAT PATCH / 2.4GHz, 5.4GHz Bluetooth, WLAN Flat Patch RF Antenna 2.41GHz ~ 2.49GHz, 4.9GHz ~ 5.8GHz 2dBi, 2.5dBi U.FL (UMCC), IPEX MHF1 Adhesive
Datasheet
FXP840.07.0055B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Taoglas Limited
Series Freedom
Package Bulk
RF Family/Standard Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz) , SHF (f > 4GHz)
Frequency (Center/Band) 2.4GHz, 5.4GHz
Frequency Range 2.41GHz ~ 2.49GHz, 4.9GHz ~ 5.8GHz
Antenna Type Flat Patch
Number of Bands 2
VSWR 2, 2.5
Return Loss -10dB, -7dB
Gain 2dBi, 2.5dBi
Power - Max 2 W
Termination U.FL (UMCC) , IPEX MHF1
Mounting Type Adhesive
Height (Max) 0.004" (0.10mm)
Applications Bluetooth, WLAN
Base Product Number FXP840
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
California Prop 65 Warning Information
Win Source Part Number 1337385-FXP840.07.0055B
Ultra Librarian 3D Model Ultra Librarian FXP840.07.0055B CAD Model

Description

The Taoglas Limited FXP840.07.0055B is a flat patch antenna with a frequency range of 2.41GHz ~ 2.49GHz and 4.9GHz ~ 5.8GHz.

  • Frequency Range: 2.41GHz ~ 2.49GHz and 4.9GHz ~ 5.8GHz
  • Power: 2 W
  • Return Loss: -10dB and -7dB
  • Height: 0.004" (0.10mm)
  • VSWR: 2 and 2.5
  • Gain: 2dBi and 2.5dBi
  • Suitable for: Bluetooth and WLAN applications
  • Package: Bulk
  • Frequency Group: UHF (2GHz ~ 3GHz) and SHF (f > 4GHz)
  • Number of Bands: 2
  • Frequency (center/band): 2.4GHz and 5.4GHz
  • Termination: U.FL (UMCC) and IPEX MHF1
  • Mounting Type: Adhesive
