Same model may have multiple batches, images only for reference.

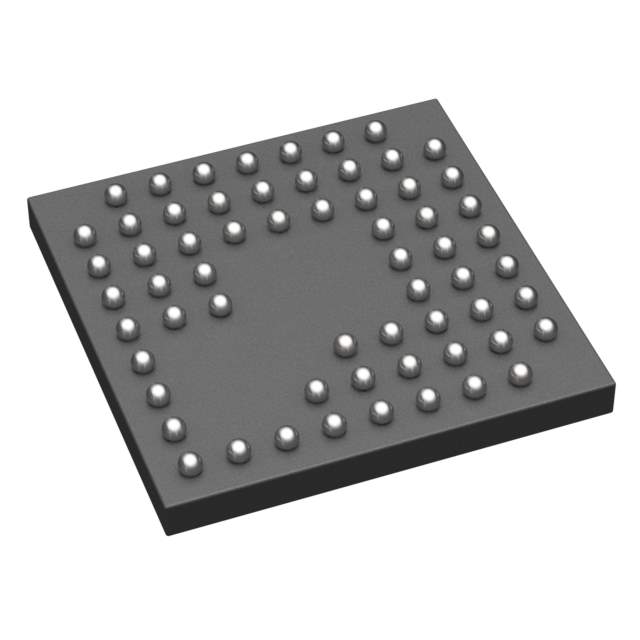

NRF51422-CEAA-R Real Image
Same model may have multiple batches, images only for reference.

NRF51422-CEAA-R

Part No NRF51422-CEAA-R
Manufacturer Nordic Semiconductors
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 62WLCSP
Datasheet
NRF51422-CEAA-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Nordic Semiconductor ASA
Packaging Reel - TR
Status Active
Type TxRx + MCU
RF Family/Standard Bluetooth, General ISM > 1GHz
Protocol ANT, Bluetooth v4.0
Modulation GFSK
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 4dBm
Sensitivity -96dBm
Memory Size 256kB Flash, 16kB RAM
Serial Interfaces I2C, SPI, UART
GPIO 32
Supply Voltage - Operating 1.8 V to 3.6 V
Current - Receiving 12.6mA to 13.4mA
Current - Transmitting 5.5mA to 16mA
Temperature Range - Operating -25°C to 75°C
Dimension 62-UFBGA, WLCSP
Win Source Part Number 1083426-NRF51422-CEAA-R
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NRF51422-CEAA-R CAD Model

Description

The NRF51422-CEAA-R is a TxRx + MCU type semiconductor integrated circuit manufactured by Nordic Semiconductor ASA.

  • Frequency: 2.4GHz
  • Protocols: ANT and Bluetooth v4.0
  • Memory Size: 256kB Flash and 16kB RAM
  • Sensitivity: -96dBm
  • Data Rate: 2Mbps
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Package Quantity: 3k pieces
