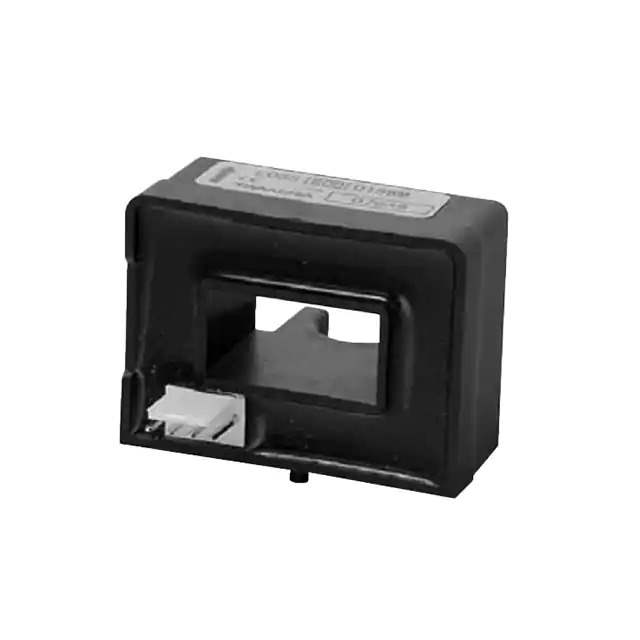

L03S100D15WM Real Image
Same model may have multiple batches, images only for reference.

L03S100D15WM

Part No L03S100D15WM
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Tamura
Series L03S
Package Tray
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 100A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 100kHz
Linearity ±1%
Voltage - Supply 15V
Response Time 10µs
Current - Supply (Max) 20mA
Temperature Range - Operating -10°C ~ 80°C
Polarization Bidirectional
Mounting Type Chassis Mount
Package / Case Module
Standard Package 20 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 9030.33.3800
Win Source Part Number 922574-L03S100D15WM
Ultra Librarian 3D Model Ultra Librarian L03S100D15WM CAD Model

Description

The 922574-L03S100D15WM is a current sensor module from Tamura's L03S series.

  • Product Name: 922574-L03S100D15WM
  • Manufacturer: Tamura
  • Series: L03S
  • Output: Ratiometric, Voltage
  • Response Time: 10μs
  • Frequency Range: DC to 100kHz
  • Sensing: AC and DC Currents
  • Sensing Range: 100A
  • Polarization: Bidirectional
  • Linearity: ±1%
  • Voltage Supply: 15V
  • Maximum Current Supply: 20mA
  • Mounting: Chassis
  • Package: Module
  • Operating Temperature Range: -10°C to 80°C
