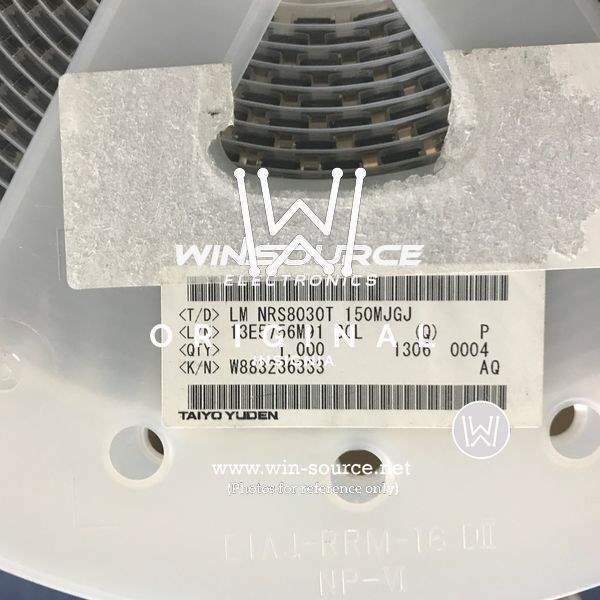

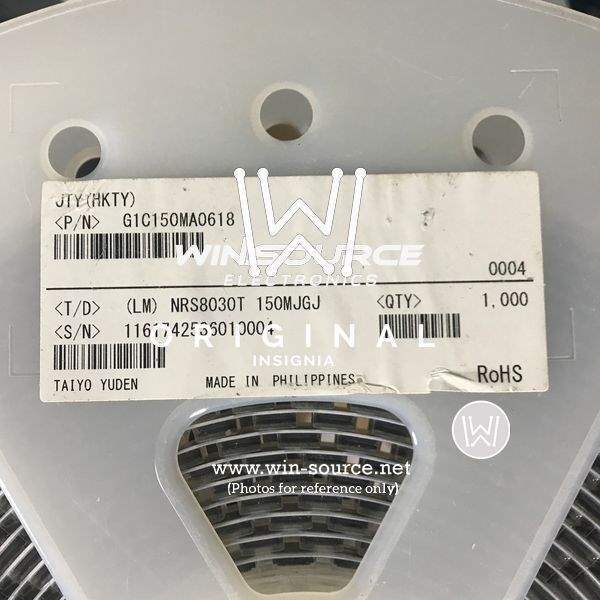

NRS8030T150MJGJ Real Image NRS8030T150MJGJ label picture NRS8030T150MJGJ real image 2
Same model may have multiple batches, images only for reference.
NRS8030T150MJGJ Real Image NRS8030T150MJGJ label picture NRS8030T150MJGJ real image 2
NRS8030T150MJGJ Real Image NRS8030T150MJGJ label picture NRS8030T150MJGJ real image 2
Same model may have multiple batches, images only for reference.

NRS8030T150MJGJ

Part No NRS8030T150MJGJ
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 15UH 2.2A 78 MOHM SMD / SMD Power Inductors (NR series S type)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Taiyo Yuden
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±20%
Current Rating (Amps) 2.2A
Current - Saturation 2A
Shielding Shielded
DC Resistance (DCR) 78mOhm Max
Frequency - Self Resonant 20MHz
Temperature Range - Operating -25°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803415-NRS8030T150MJGJ
Ultra Librarian 3D Model Ultra Librarian NRS8030T150MJGJ CAD Model

Description

The Taiyo Yuden NRS8030T150MJGJ is a wirewound inductor with a shielding feature.

  • Inductance: 15μH
  • Tolerance: ±20%
  • Current Saturation: 2A
  • Frequency of Self-Resonance: 20MHz
  • DC Resistance (DCR): 78mOhm Max
  • Dimension: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Height: 0.118" (3.00mm)
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (unlimited)
  • Current Rating: 2.2A
  • Inductance Frequency Test: 100kHz
  • Material-Core: Ferrite
  • Manufacturer: Taiyo Yuden
