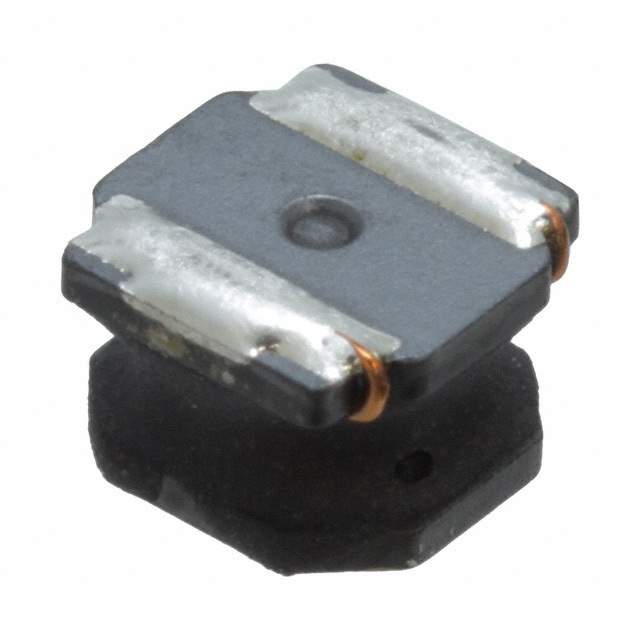

The NRS6045T2R3NMGKV is a Taiyo Yuden power inductor designed for various DC-DC converter applications. This inductor is part of the NRS series, known for its compact size and high efficiency. It's particularly suited for use in portable devices and other applications where space is at a premium but high performance is required.

Applications:

• Smartphones and tablets: For power management in various circuits.
• Portable audio players: Ensuring efficient power delivery.
• Digital cameras: Used in DC-DC converters.
• Solid State Drives (SSDs): Providing stable power.
• Point of Load (POL) converters: Efficient power conversion close to the load.

Features:

• Small size: Dimensions are 6.0 x 6.0 x 4.5 mm, making it suitable for compact devices.
• High efficiency: Optimized for minimal power loss.
• Shielded construction: Minimizes EMI (Electromagnetic Interference).
• Low DC resistance: Reduces power dissipation.
• High current handling: Designed to withstand significant current without saturation.

Benefits:

• Extended battery life: High efficiency translates to less power consumption and longer battery life in portable devices.
• Reduced EMI: Shielded construction minimizes interference with other components.
• Space saving: Compact size allows for denser board designs.
• Improved thermal performance: Low DC resistance reduces heat generation.
• Stable operation: Reliable performance in demanding applications.

Additional Details:

The NRS6045T2R3NMGKV has an inductance value of 2.3 μH. Its saturation current is rated to ensure it can handle peak currents without significant inductance drop. The operating temperature range is typically between -40°C to +125°C. The inductor's core material and winding construction are optimized for low core loss and high Q-factor. This component is RoHS compliant, ensuring it meets environmental standards. This inductor is designed for automatic mounting using standard surface mount technology (SMT) processes.
