Same model may have multiple batches, images only for reference.

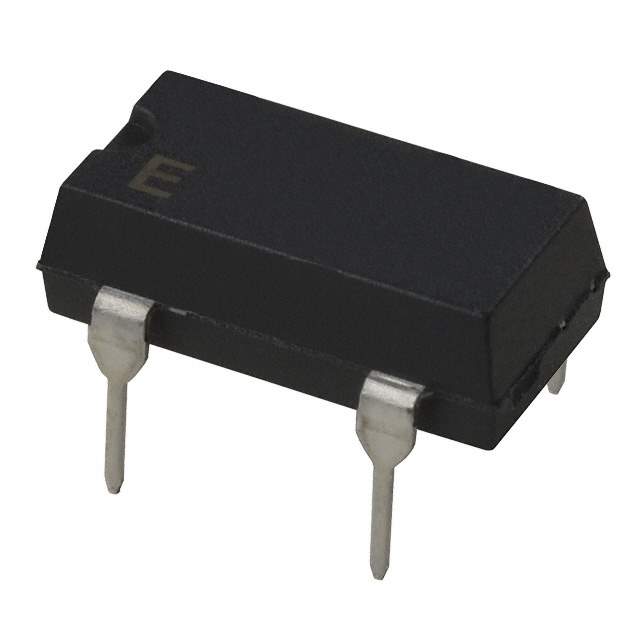

SG-531P 10.0000MC:ROHS Real Image
Same model may have multiple batches, images only for reference.

SG-531P 10.0000MC:ROHS

Part No SG-531P 10.0000MC:ROHS
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Oscillators
Description OSC XO 10.000MHZ CMOS TTL PC PIN
Datasheet
SG-531P 10.0000MC:ROHS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer EPSON
Packaging Tube/Rail
Status Active
Type XO (Standard)
Frequency 10MHz
Purpose Enable/Disable
Output CMOS, TTL
Supply Voltage - Operating 5V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C to 70°C
Current - Supply (Max) 23mA
Mounting Through Hole
Dimension 0.539" L x 0.260" W (13.70mm x 6.60mm)
Height - Seated (Max) 0.209" (5.30mm)
Current - Supply (Disable) (Max) 12mA
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 319635-SG-531P 10.0000MC:ROHS
Ultra Librarian 3D Model Ultra Librarian SG-531P 10.0000MC:ROHS CAD Model

Description

The supply and demand status of this component is limited.

  • Manufacturer: EPSON
  • Packaging: Tube/Rail
  • Application: Suitable for various electronic applications
  • Frequency: 10MHz
  • Frequency Stability: ±100ppm
  • Dimension: 0.539" L x 0.260" W (13.70mm x 6.60mm)
  • Height Seated (Max): 0.209" (5.30mm)
  • Mounting Type: Through Hole
  • Output: CMOS, TTL
  • Current Supply (Max): 23mA
  • Current Supply (Disable) (Max): 12mA
  • Operating Temperature Range: -20°C to 70°C
  • Supply Voltage: 5V
