Same model may have multiple batches, images only for reference.

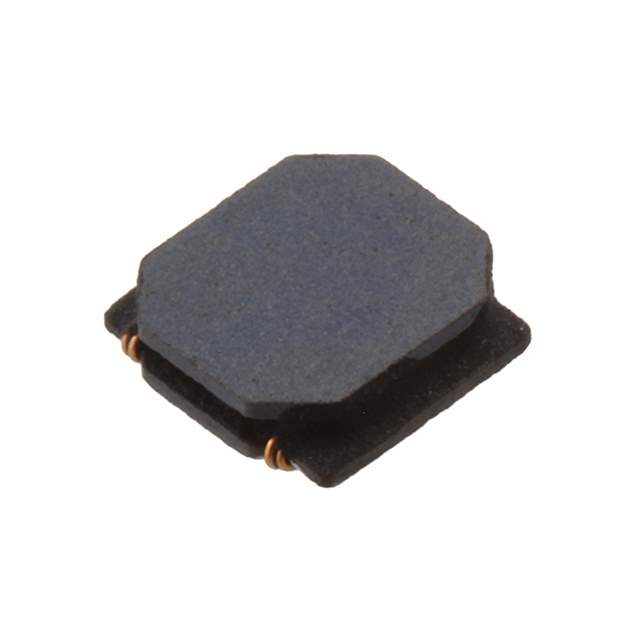

MDMK4040T2R2MFV Real Image
Same model may have multiple batches, images only for reference.

MDMK4040T2R2MFV

Part No MDMK4040T2R2MFV
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description Inductor Power Wirewound 2.2uH 20% 100KHz Metal 2.5A 0.092Ohm DCR 1515 Automotive T/R / FIXED IND 2.2UH 92 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Series MCOIL, MD
Packaging Reel package
Type Wirewound
Material - Core Metal
Inductance 2.2μH
Tolerance ±20%
Shielding Shielded
DC Resistance (DCR) 92 mOhm Max
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Win Source Part Number 788394-MDMK4040T2R2MFV
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name MD
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian MDMK4040T2R2MFV CAD Model

Description

The MCOIL, MD series from Taiyo Yuden is an inductor.

  • Type: Shielded Wirewound Inductor
  • Inductance: 2.2μH
  • Tolerance: ±20%
  • Package: Nonstandard, SMD
  • Operating Temperature: -40°C to 125°C
