MDMK2020T2R2MM

Part No MDMK2020T2R2MM
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.45A 109 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel
Type Wirewound
Material - Core Metal
Inductance 2.2μH
Tolerance ±20%
Current Rating (Amps) 1.45A
Current - Saturation 1.75A
Shielding Shielded
DC Resistance (DCR) 109mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 754816-MDMK2020T2R2MM
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MDMK2020T2R2MM CAD Model

Description

The Taiyo Yuden 754816-MDMK2020T2R2MM is a wirewound inductor that is shielded and designed to operate at a low frequency.

  • Mounting Style: SMD
  • Packaging: Reel
  • Inductance: 2.2μH
  • Tolerance: ±20%
  • Core Material: Metal
  • DC Resistance (DCR): 109mOhm Max
  • Operating Temperature: -40°C ~ 125°C
  • Supply and Demand Status: Balance

You May Also Be Interested in

BPCF00070732681K00 Pulse – Price, Stock & Datasheet
BPCF00070732681K00
Pulse
INDUCTOR POWER
Need more? Email Us

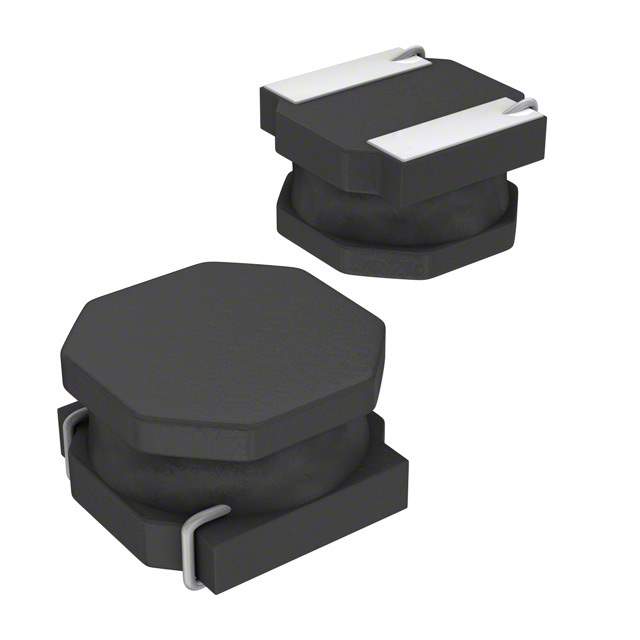

Picture of VLS6045AF-330M
