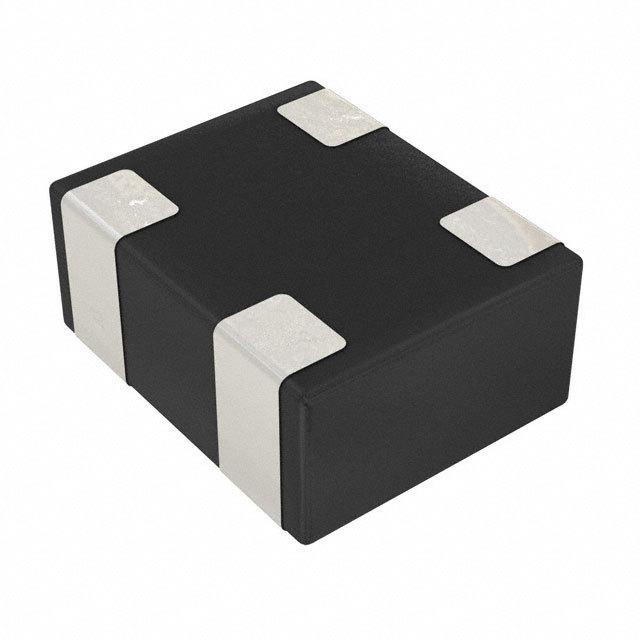

MCF12102G400-T Taiyo Yuden
Same model may have multiple batches, images only for reference.

MCF12102G400-T

Part No MCF12102G400-T
Manufacturer Taiyo Yuden
Catalog Common Mode Chokes
Description CMC 100MA 2LN 40 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 40 Ohm @ 100MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 2.5 Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.026" (0.65mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 041540-MCF12102G400-T
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian MCF12102G400-T CAD Model

Description

The MCF12102G400-T is a signal line filter type product manufactured by Taiyo Yuden.

  • GPTDescription: The supply and demand status is balanced and comes in a package of 5k pcs.
  • GPTDescription: The MCF12102G400-T is a surface mount device with a voltage rating of 5V and a current rating of 100mA.
  • Impedance: 40 Ohm @ 100MHz
  • DC Resistance (DCR): 2.5 Ohm
  • GPTDescription: The MCF12102G400-T is designed for a temperature range of -40°C to 85°C.
