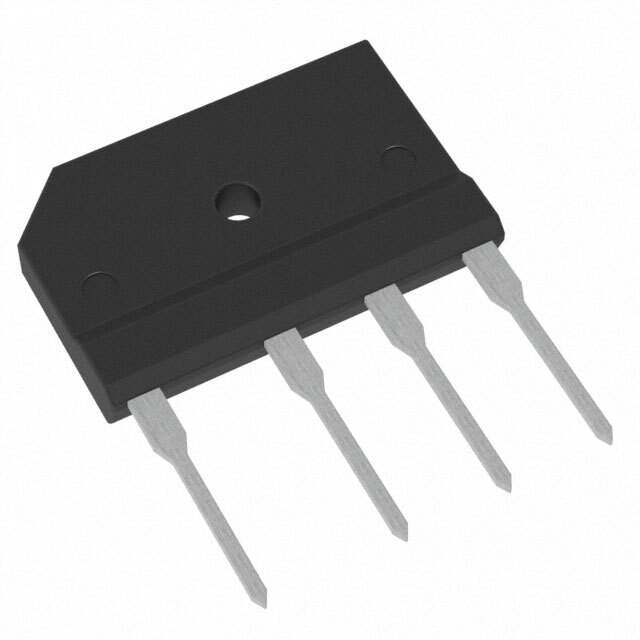

TS15P04G Real Image
Same model may have multiple batches, images only for reference.

TS15P04G

Part No TS15P04G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 400V 15A TS-6P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Discontinued
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 15 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 15 A
Current - Reverse Leakage @ Vr 10 µA @ 400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, TS-6P
Supplier Device Package TS-6P
Base Product Number TS15P04
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 691478-TS15P04G
Ultra Librarian 3D Model Ultra Librarian TS15P04G CAD Model

Description

The 691478-TS15P04G is a single-phase bridge rectifier diode with a maximum forward voltage of 1.1V and an average rectified current of 15A.

  • Maximum Forward Voltage: 1.1V
  • Average Rectified Current: 15A
  • Designed for: Applications where a high current and low voltage drop are required, such as in power supplies and motor drives.
  • Features: Low reverse leakage current, high peak reverse voltage, suitable for high voltage applications.
  • Package: 4-SIP, TS-6P through-hole package
  • Series: Taiwan Semiconductor's TS15P04 series
