Same model may have multiple batches, images only for reference.

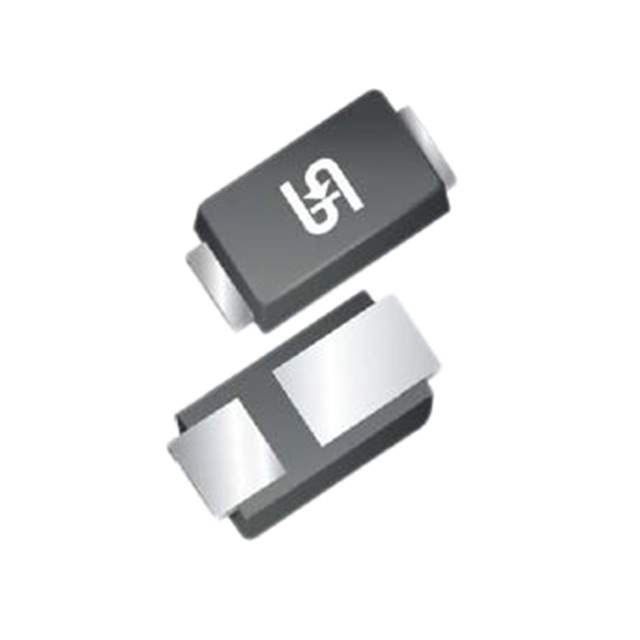

SS23M RSG Real Image
Same model may have multiple batches, images only for reference.

SS23M RSG

Part No SS23M RSG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE, SCHOTTKY, STANDARD, 2A, 3
Datasheet
SS23M RSG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 600mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 150μA @ 30V
Capacitance @ Vr, F 35pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package Micro SMA
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1102095-SS23M RSG
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian SS23M RSG CAD Model

Description

The Taiwan Semiconductor Schottky diode with Win Source Part Number 1102095-SS23M RSG is a fast recovery component that offers balance supply and demand status.

  • Win Source Part Number: 1102095-SS23M RSG
  • Recovery: Fast
  • Supply and Demand: Balanced
  • Manufacturer: Taiwan Semiconductor
