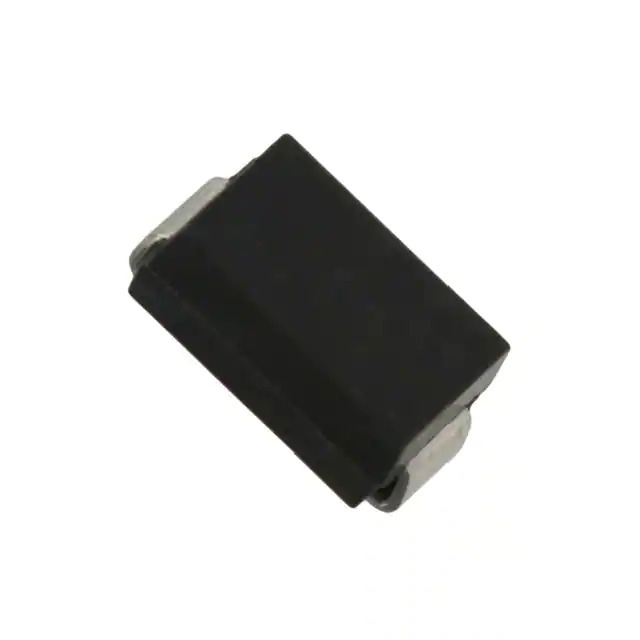

SMBJ26CAH

Name: SMBJ26CAH
Brand: Taiwan Semiconductor
SKU: 1355330
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMBJ26CAH
Manufacturer	Taiwan Semiconductor
Catalog	TVS - Diodes
Description	TVS DIODE 26VWM 42.1VC DO214AA / 42.1V Clamp 14.9A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Taiwan Semiconductor Corporation
Series	Automotive, AEC-Q101, SMBJH
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	26V
Voltage - Breakdown (Min)	28.9V
Voltage - Clamping (Max) @ Ipp	42.1V
Current - Peak Pulse (10/1000µs)	14.9A
Power - Peak Pulse	600W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
Base Product Number	SMBJ26
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1355330-SMBJ26CAH
Ultra Librarian 3D Model	Ultra Librarian SMBJ26CAH CAD Model

Alternative Products

Description

The SMBJ26CAH is a bidirectional TVS diode from Taiwan Semiconductor Corporation.

Series: SMBJH
Application: Automotive
Reverse Standoff Voltage: 26V
Breakdown Voltage: 28.9V
Clamping Voltage: 42.1V
Peak Pulse Current: 14.9A
Power Rating: 600W
Package: DO-214AA (SMB)
Mounting Type: Surface Mount
