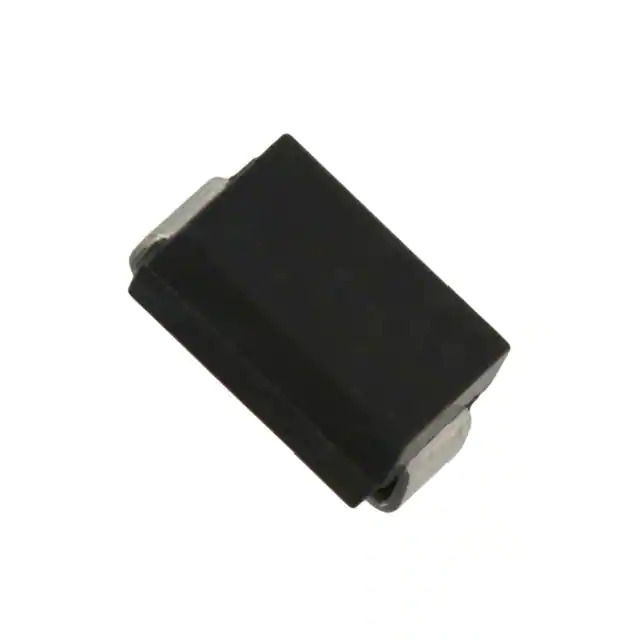

SMBJ16A M4G

Name: SMBJ16A M4G
Brand: Taiwan Semiconductor
SKU: 1362220
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMBJ16A M4G
Manufacturer	Taiwan Semiconductor
Catalog	TVS - Diodes
Description	TVS DIODE 16VWM 26VC DO214AA / 26V Clamp 24.2A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Taiwan Semiconductor Corporation
Series	SMBJ
Package	Tape & Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	16V
Voltage - Breakdown (Min)	17.8V
Voltage - Clamping (Max) @ Ipp	26V
Current - Peak Pulse (10/1000µs)	24.2A
Power - Peak Pulse	600W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
Base Product Number	SMBJ16
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362220-SMBJ16A M4G
Ultra Librarian 3D Model	Ultra Librarian SMBJ16A M4G CAD Model

Description

The SMBJ16A M4G is a transient voltage suppressor diode designed for surface mount applications.

Package Size: DO-214AA, SMB
Packaging: Tape and Reel
Manufacturer: Taiwan Semiconductor Corporation
Series: SMBJ
Product Status: Active
Application: General Purpose
Reverse Standoff Voltage: 16V
Breakdown Voltage: 17.8V
Clamping Voltage: 26V @ Peak Pulse Current of 24.2A
Power Rating: 600W
