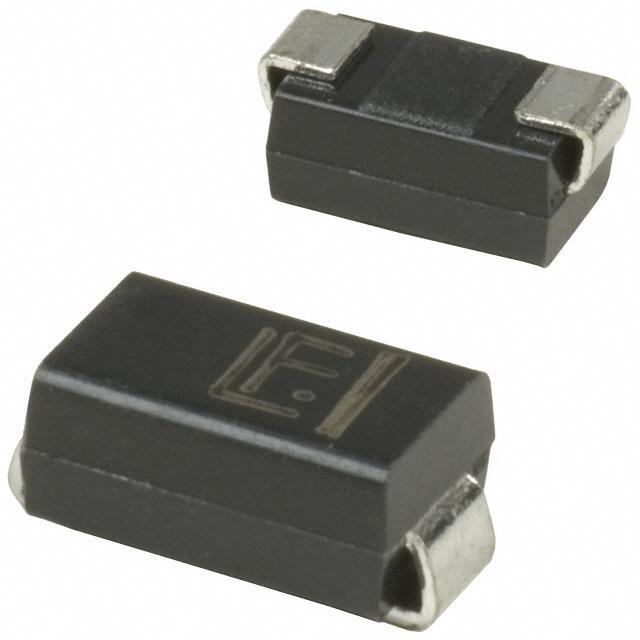

SMAJ12

Name: SMAJ12
Brand: Taiwan Semiconductor
SKU: 895613
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMAJ12
Manufacturer	Taiwan Semiconductor
Catalog	TVS - Diodes
Description	400W, 14.8V, 10%, UNIDIRECTIONAL / 22V Clamp 18.2A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Taiwan Semiconductor
Series	SMAJ
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	12V
Voltage - Breakdown (Min)	13.3V
Voltage - Clamping (Max) @ Ipp	22V
Current - Peak Pulse (10/1000µs)	18.2A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
Base Product Number	SMAJ12
Standard Package	7,500 pcs
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	895613-SMAJ12
Ultra Librarian 3D Model	Ultra Librarian SMAJ12 CAD Model

Alternative Products

Description

The SMAJ12 is a unidirectional TVS diode from the SMAJ series.

Reverse Standoff Voltage: 12V
Breakdown Voltage: 13.3V
Clamping Voltage: 22V @ peak pulse current of 18.2A
Power Rating: 400W
Package Type: Surface mount
Operating Temperature Range: -55°C to 150°C
Manufacturer: Taiwan Semiconductor
Product Status: Active
