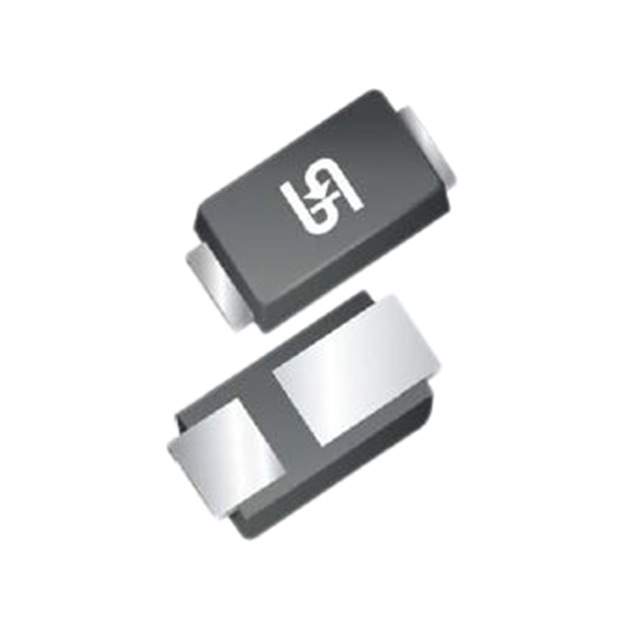

S1JM Real Image1 S1JM Real Image2
Same model may have multiple batches, images only for reference.
S1JM Real Image1 S1JM Real Image2
S1JM Real Image1 S1JM Real Image2
Same model may have multiple batches, images only for reference.

S1JM

Part No S1JM
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description 1A, 600V, STANDARD RECOVERY RECT / Diode 600 V 1A Surface Mount Micro SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes>Rectifiers>Single Diodes
Mfr Taiwan Semiconductor
Series -
Package Tape & Reel (TR)
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 780 ns
Current - Reverse Leakage @ Vr 1 µA @ 600 V
Capacitance @ Vr, F 5pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case 2-SMD, Flat Lead
Supplier Device Package Micro SMA
Operating Temperature - Junction -55°C ~ 175°C
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 18,000 pcs
Win Source Part Number 1383363-S1JM
Ultra Librarian 3D Model Ultra Librarian S1JM CAD Model

Description

The S1JM is a single diode rectifier designed for standard recovery applications.

  • Diode Type: Standard Recovery
  • Voltage - DC Reverse (Vr) (Max): 600V
  • Current - Average Rectified (Io): 1A
  • Voltage - Forward (Vf) (Max) @ If: 1.1V @ 1A
  • Reverse Recovery Time (trr): 780ns
  • Current - Reverse Leakage @ Vr: 1μA @ 600V
  • Capacitance @ Vr, F: 5pF @ 4V, 1MHz
  • Operating Temperature: -55°C ~ 175°C
  • Mounting Type: Surface Mount
  • Package / Case: 2-SMD, Flat Lead
  • Manufacturer: Taiwan Semiconductor
  • Series: S1
  • Standard Package Quantity: 18,000
