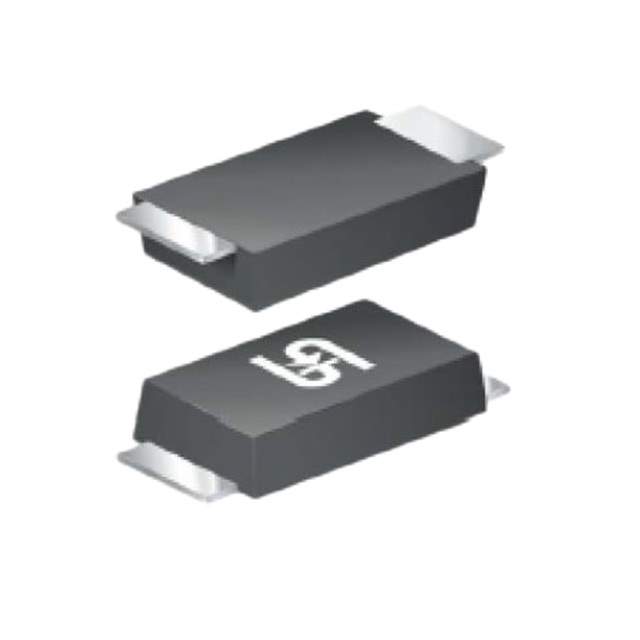

Same model may have multiple batches, images only for reference.

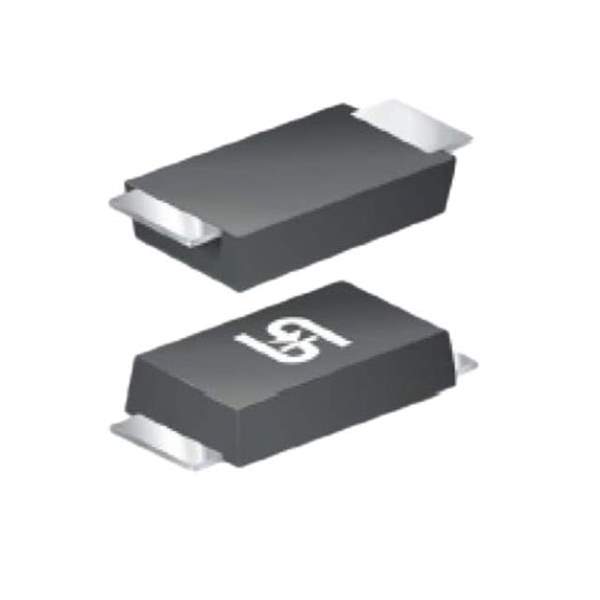

HS1JLW RVG Real Image
Same model may have multiple batches, images only for reference.

HS1JLW RVG

Part No HS1JLW RVG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE, HIGH EFFICIENT, 1A, 600V,
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.7V @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 75ns
Current - Reverse Leakage @ Vr 1μA @ 600V
Capacitance @ Vr, F 16pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package SOD123W
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 1043953-HS1JLW RVG
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian HS1JLW RVG CAD Model

Description

The Taiwan Semiconductor HS1JLW RVG is a standard diode that is designed to operate in a temperature range of -55°C to 175°C.

  • Manufacturer: Taiwan Semiconductor
  • Temperature Range: -55°C to 175°C
  • Maximum Reverse Voltage: 600V
  • Average Rectified Current: 1A
  • Forward Voltage: 1.7V @ 1A
  • Reverse Recovery Time: 75ns
  • Capacitance: 16pF @ 4V and 1MHz
  • Case/Package: SOD123W
  • Mounting Type: Surface Mount
  • Quantity per Package: 3k pcs
  • Product Category: Discrete Semiconductor Product
