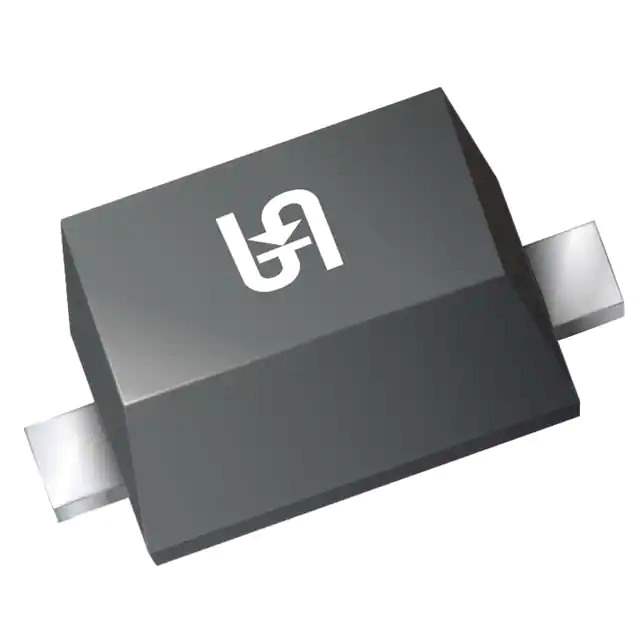

BAT42WS

Part No BAT42WS
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description SOD-323F, 30V, 0.2A, SCHOTTKY DI
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 200 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 500 nA @ 25 V
Capacitance @ Vr, F 7pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case SC-90, SOD-323F
Supplier Device Package SOD-323F
Operating Temperature - Junction -65°C ~ 125°C
Base Product Number BAT42
Standard Package 6,000 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 568826-BAT42WS
Ultra Librarian 3D Model Ultra Librarian BAT42WS CAD Model

Description

The BAT42WS is a single rectifier diode that belongs to the Discrete Semiconductor Products - Diodes - Rectifiers category.

  • Application: Small signal applications
  • Current Rating: Less than 200mA
  • Technology: Schottky
  • Maximum Reverse Voltage (Vr): 30 V
  • Average Rectified Current (Io): 200mA
  • Forward Voltage (Vf): 1 V @ 200 mA
  • Reverse Recovery Time (trr): 5 ns
  • Reverse Leakage Current (Vr): 500 nA @ 25 V
  • Capacitance: 7pF @ 1V and 1MHz
  • Mounting Type: Surface mountable
  • Package: SC-90, SOD-323F
  • Status: Active
