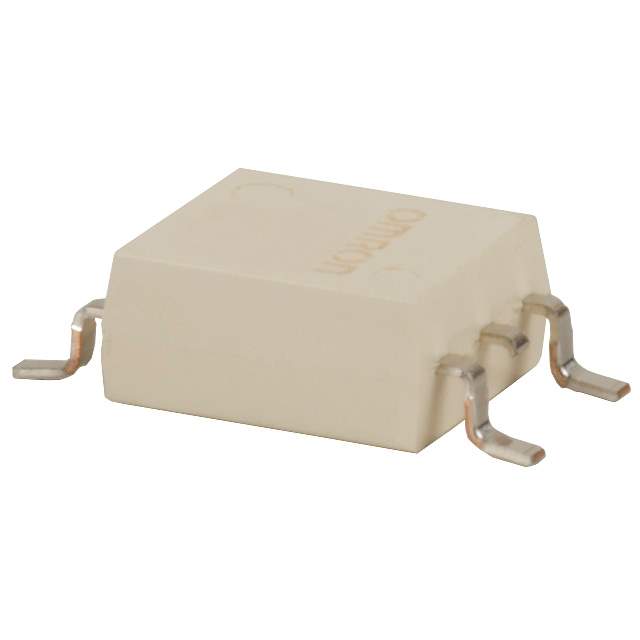

The Omron G3VM-601GTR is a Solid State Relay (SSR) in a small surface-mount package. It is designed for high-frequency signal switching applications, offering fast switching speeds and low capacitance, making it suitable for communication and measurement equipment.

Applications:

• High-frequency signal switching.
• ATE (Automatic Test Equipment).
• Communication equipment.
• Measurement instruments.
• Security systems.

Features:

• Surface mount package.
• Low output capacitance.
• Fast switching speed.
• High isolation voltage.
• Normally open (NO) contact.

Benefits:

• Reduces board space requirements.
• Maintains signal integrity at high frequencies.
• Enables precise and rapid switching.
• Provides electrical isolation between control and load circuits.
• Offers a reliable and long-lasting switching solution.

Additional Details:

The G3VM-601GTR utilizes MOSFET technology for switching, providing a clean and reliable switching action without mechanical contacts. Its low output capacitance minimizes signal distortion and insertion loss at high frequencies. The high isolation voltage ensures safety and prevents interference between the control and load circuits. The device is controlled by a low-current input signal, making it compatible with various logic levels. Typical specifications include a load voltage rating of up to 60V, a load current rating of several hundred milliamps, and an isolation voltage of several kilovolts. This SSR is often used in applications requiring precise and reliable switching of high-frequency signals, such as in test and measurement equipment, communication systems, and security devices. For detailed specifications, application circuits, and safety information, refer to the Omron G3VM-601GTR datasheet.
