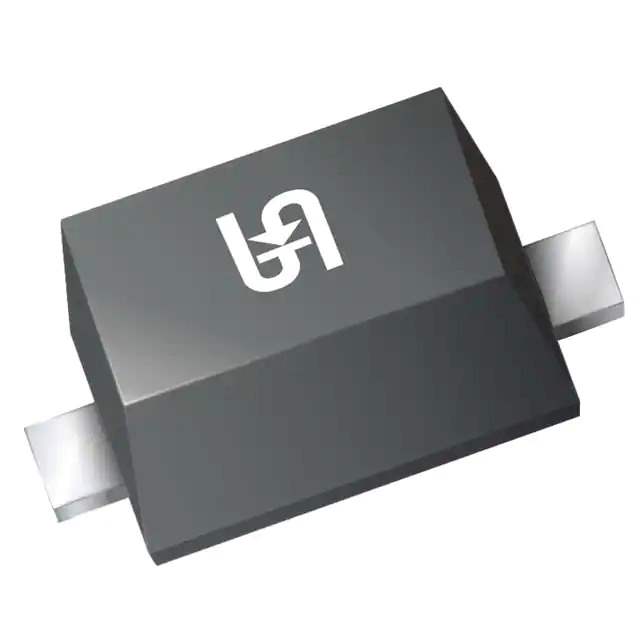

BAS316WS Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Standard
Current - Average Rectified (Io) 250mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 1 µA @ 75 V
Capacitance @ Vr, F 1.5pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case SC-90, SOD-323F
Supplier Device Package SOD-323F
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number BAS316
Standard Package 9,000 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 568704-BAS316WS
Ultra Librarian 3D Model Ultra Librarian BAS316WS CAD Model

Description

The BAS316WS is a fast recovery diode designed for rectification applications.

  • Maximum Average Rectified Current: 250mA
  • Forward Voltage: 1.25V @ 150mA
  • Reverse Recovery Time: 4ns
  • Reverse Leakage Current: 1μA @ 75V
  • Package: SC-90, SOD-323F
  • Packaging: Tape and reel
  • Standard Package: 9,000 pcs
  • Operating Temperature Range: -65°C to 150°C
  • Mounting Type: Surface Mountable
  • Manufacturer: Taiwan Semiconductor
  • Product Status: Active
