Same model may have multiple batches, images only for reference.

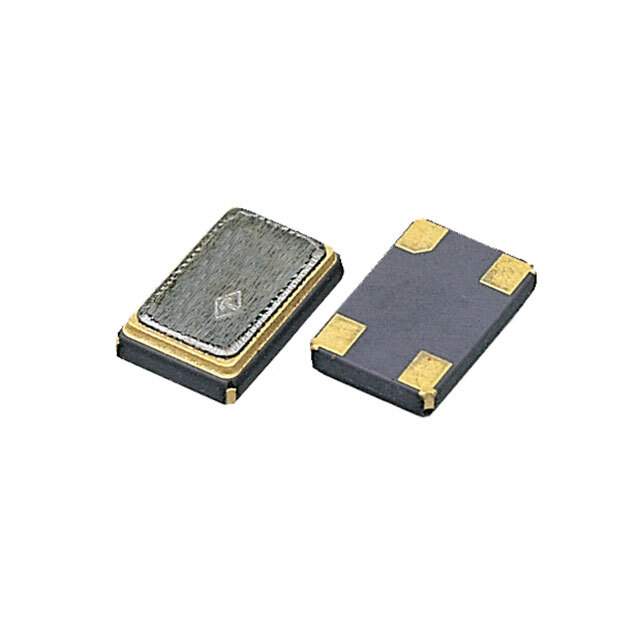

XVHEELNANF-8.000000 Real Image
Same model may have multiple batches, images only for reference.

XVHEELNANF-8.000000

Part No XVHEELNANF-8.000000
Manufacturer Taitien
Catalog Crystals
Description CRYSTAL 8.0000MHZ 20PF SMD / 8 MHz ±30ppm Crystal 20pF 100 Ohms 4-SMD, No Lead
Datasheet
XVHEELNANF-8.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Taitien
Series XV
Package Strip
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Standard Package 1,000
Win Source Part Number 1151417-XVHEELNANF-8.000000
Ultra Librarian 3D Model Ultra Librarian XVHEELNANF-8.000000 CAD Model

Description

The XVHEELNANF-8.000000 is a MHz crystal oscillator from Taitien.

  • Frequency: 8 MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±30ppm
  • Load Capacitance: 20pF
  • Package: Strip
  • Mounting Type: SMD (SMT)
  • ESR (Equivalent Series Resistance): 100 ohms
  • Operating Temperature Range: -40°C to 85°C
  • Popularity: Medium
