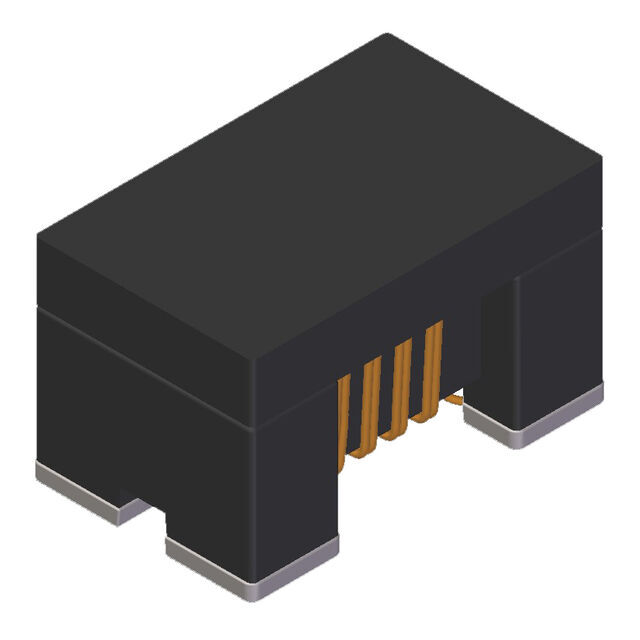

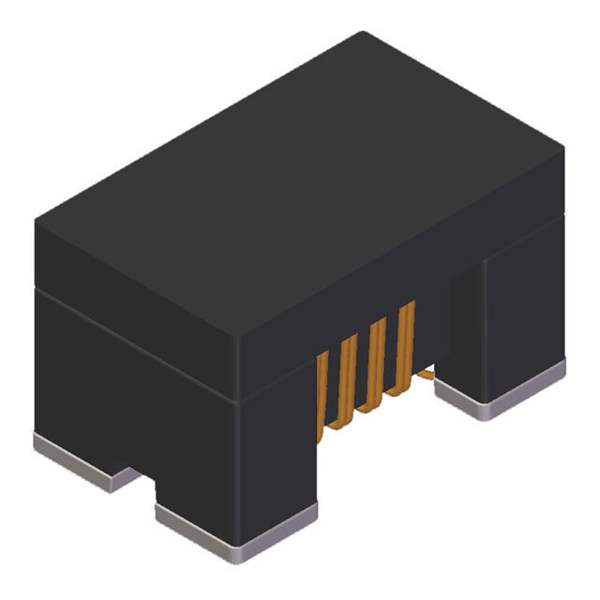

WCM2012F2SF-181T03 TAI-TECH Advanced Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

WCM2012F2SF-181T03

Part No WCM2012F2SF-181T03
Manufacturer TAI-TECH Advanced Electronics
Catalog Common Mode Chokes
Description 2 Line Common Mode Choke Surface Mount 180 Ohms @ 100 MHz 350mA DCR 350mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TAI-TECH Advanced Electronics Co., Ltd.
Series WCM2012F2SF
Packaging Reel - TR
Number of Lines 2
Impedance @ Frequency 180 Ohms @ 100 MHz
Current Rating (Max) 350mA
DC Resistance (DCR) (Max) 350mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) 0.055" (1.40mm)
Package / Case 0805 (2012 Metric), 4 PC Pad
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1478164-WCM2012F2SF-181T03
Ultra Librarian 3D Model Ultra Librarian WCM2012F2SF-181T03 CAD Model
