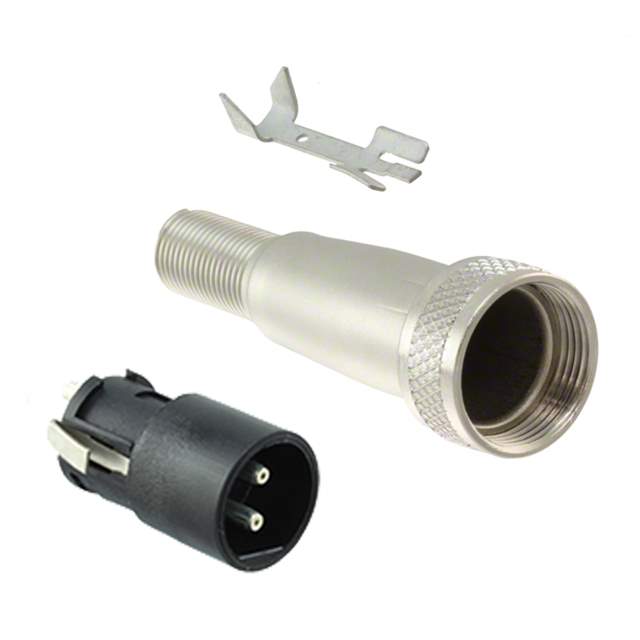

SL402MX Real Image
Same model may have multiple batches, images only for reference.

SL402MX

Part No SL402MX
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Switchcraft Inc.
Series Slim-Line® SL40
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 2
Shell Size - Insert SL-2M
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation 1
Primary Material Metal
Shell Material Copper Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Features Cable Clamp, Coupling Nut, Strain Relief
Shielding Shielded
Current Rating (Amps) 5A
Cable Opening 0.280" (7.10mm)
Contact Material Copper Alloy
Insert Material Thermoplastic, Glass Filled
Applications Audio, Industrial, Marine, Medical
Base Product Number SL402M
Other Names SC2538,SL402MX
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1294175-SL402MX
Ultra Librarian 3D Model Ultra Librarian SL402MX CAD Model

Description

The Switchcraft Inc. SL402MX is a circular connector that comes in a slim-line SL40 series.

  • Shielded: shielded
  • Type: male plug with two positions
  • Features: cable clamp, coupling nut, and strain relief features
  • Mounting: designed for free-hanging (in-line) mounting
  • Shell Size Insert: SL-2M
  • Material: made of copper alloy
  • Contact Finish: silver contact finish for mating
  • Operating Temperature Range: not specified
  • Availability: in the open market
