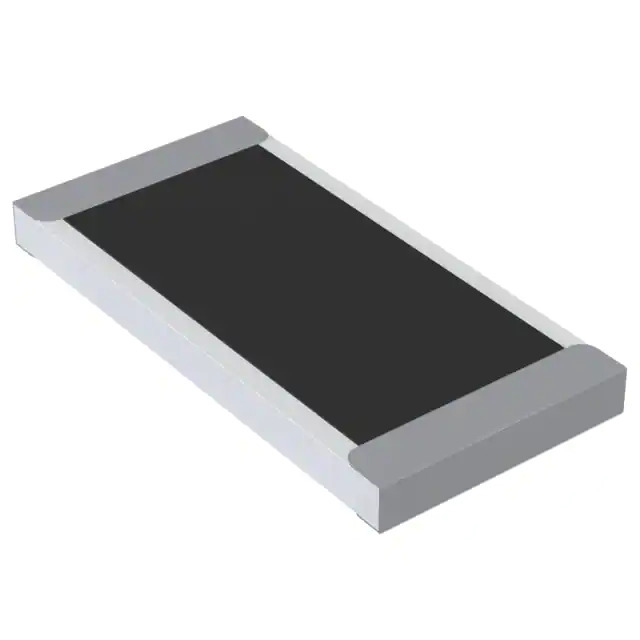

Same model may have multiple batches, images only for reference.
TLR3A30DR001FTDG TE Connectivity
Same model may have multiple batches, images only for reference.

TLR3A30DR001FTDG

Part No TLR3A30DR001FTDG
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 0.001 OHM 1% 3W 2512
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series TLR, CGS
Package Tape & Reel
Product Status Active
Resistance 1 MOhms
Tolerance ±1%
Power (Watts) 3W
Composition Metal Foil
Features Current Sense
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Failure Rate -
Base Product Number TLR3A30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375539-TLR3A30DR001FTDG
Ultra Librarian 3D Model Ultra Librarian TLR3A30DR001FTDG CAD Model

Description

The TE Connectivity Passive Product TLR, CGS Chip Resistor is a surface mount resistor used in electronic devices.

  • Resistance: 1 MOhms
  • Power Rating: 3W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Type: Current Sense Resistor
