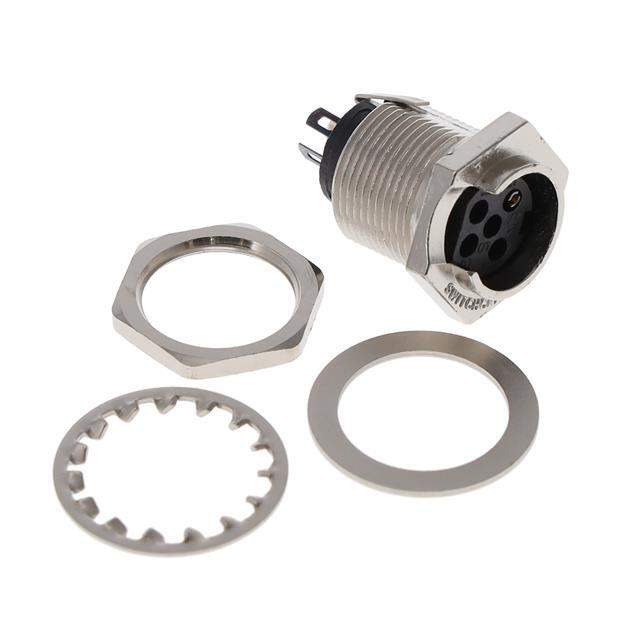

SL175FX Real Image
Same model may have multiple batches, images only for reference.

SL175FX

Part No SL175FX
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Switchcraft Inc.
Series Slim-Line® SL17
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 5
Shell Size - Insert SL-5F
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Termination Solder Eyelet(s)
Fastening Type Threaded
Orientation D
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Shielding Unshielded
Current Rating (Amps) 5A
Contact Material Copper Alloy
Insert Material Thermoplastic
Applications Audio, Industrial, Marine, Medical
Base Product Number SL175F
Other Names Q8043375,SL175FXL,SC2731,SL175FX
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1294194-SL175FX
Ultra Librarian 3D Model Ultra Librarian SL175FX CAD Model

Description

The SL175FX is a circular connector manufactured by Switchcraft Inc.

  • Series: Slim-Line® SL17
  • Positions: 5
  • Connector Type: Receptacle with Female Sockets
  • Termination: Solder Eyelets
  • Contact Finish for Mating: Silver
  • Current Rating: 5A
  • Shell Material: Zinc Alloy
  • Shell Finish: Nickel
  • Insert Material: Thermoplastic
  • Material Flammability Rating: UL94 V-0
  • Applications: Audio, Industrial, Marine, and Medical
  • Mounting: Panel Mounted
  • Mounting Feature: Bulkhead-Front Side Nut
  • Shielding: Unshielded
  • Ingress Protection Rating: N/A
  • RoHS3 Compliant: Yes
  • REACH: Unaffected
