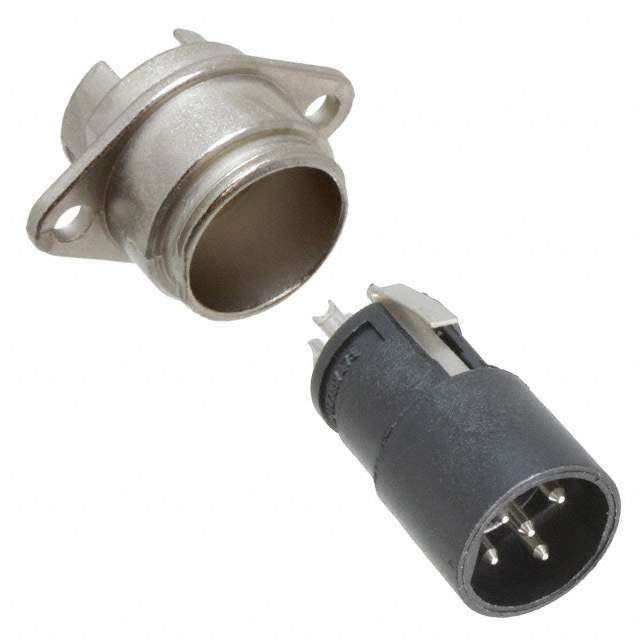

SL105M Real Image
Same model may have multiple batches, images only for reference.

SL105M

Part No SL105M
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Switchcraft Inc.
Series Slim-Line® SL10
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 5
Shell Size - Insert SL-5M
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Threaded
Orientation 4
Primary Material Metal
Shell Material Zinc Die Cast
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Shielding Unshielded
Current Rating (Amps) 5A
Contact Material Copper Alloy
Insert Material Thermoplastic, Glass Filled
Applications Audio, Industrial, Marine, Medical
Other Names SL105M,SC1897
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1294195-SL105M
Ultra Librarian 3D Model Ultra Librarian SL105M CAD Model

Description

The Switchcraft Inc. SL105M is a slim-line circular connector that is used to connect audio, industrial, marine, and medical devices.

  • Popularity: High
  • Current Rating: 5A
  • Connector Type: Receptacle with Male Pins
  • Positions: 5
  • Color: Silver
  • Shell Finish: Zinc Die-Cast with Nickel Plating
  • Series: Slim-Line SL10
  • Mounting: Panel Mounted
