Same model may have multiple batches, images only for reference.

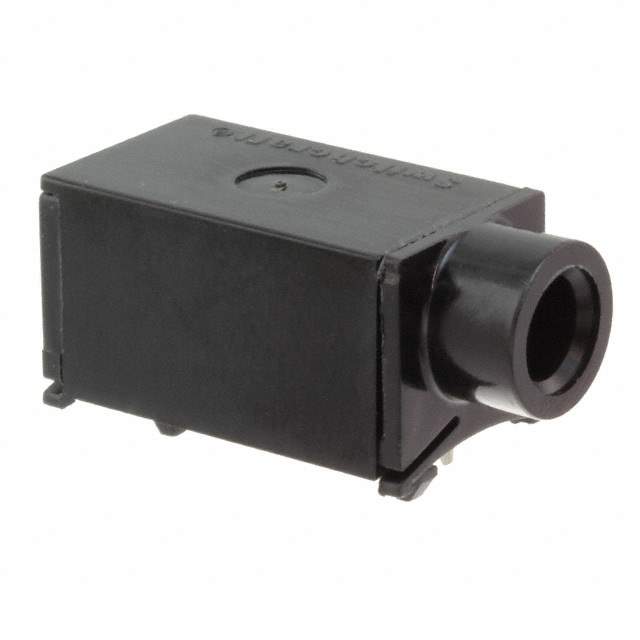

SN37A11 Real Image
Same model may have multiple batches, images only for reference.

SN37A11

Part No SN37A11
Manufacturer Switchcraft Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK MONO 6.35MM R/A / Conn 1/4" Phone Jack F 2 POS 7.62mm Solder RA Thru-Hole 4 Terminal 1 Port
Datasheet
SN37A11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Series SN37A
Packaging Bulk
Connector Type Phone Jack
Gender Female
Signal Lines Mono
Industry Recognized Mating Diameter 6.35mm (0.250", 1/4") - Headphone
Actual Diameter 0.250" (6.35mm)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Through Hole, Right Angle
Termination Solder
Shielding Unshielded
Features Board Guide, Cover
Contact Material - Plating Nickel
Body Color Black
Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Housing Material Thermoplastic
Contact Material Brass
Win Source Part Number 770886-SN37A11
Popularity Medium
Supply and Demand Status Limited
Family Name SN
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SN37A11 CAD Model

Description

The SN37A11 is a female phone jack connector with board guide and cover features and is a product of Switchcraft Inc..

  • Packaging: Bulk
  • Connector Type: Phone jack
  • Termination: Solder
  • Contact Material: Brass
  • Conductors: 2
  • Contacts: 2
  • Contact Material: Nickel plating
  • Panel Hole Size: 6.35mm (0.250", 1/4") - Headphone
  • Actual Diameter: 0.250" (6.35mm)
  • Mating Diameter: Industry-recognized
  • Signal Line: Mono
  • ECCN: EAR99
  • Manufactured In: United States of America
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
