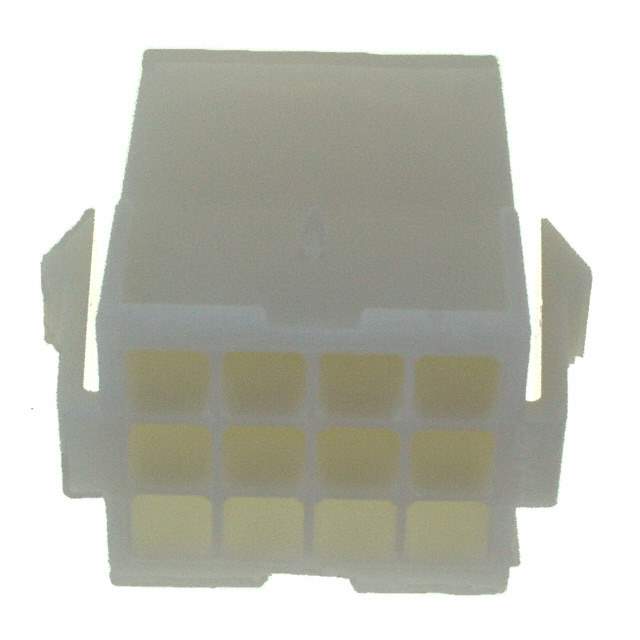

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Connector Type Receptacle
Contact Type Male or Female
Number of Positions 12
Pitch 0.163" (4.14mm)
Number of Rows 3
Row Spacing 0.163" (4.14mm)
Mounting Type Panel Mount, Snap-In
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Note Contacts Not Included
Base Product Number 172162
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names A25700,2266-172162-1
Standard Package 500
Win Source Part Number 1197188-172162-1
Ultra Librarian 3D Model Ultra Librarian 172162-1 CAD Model

Description

TE Connectivity AMP Connectors presents a Mini-Universal MATE-N-LOK series 12-position rectangular connector with a pitch of 0.163" (4.14mm).

  • Color: Natural
  • Material: Polyamide (PA), nylon, glass-filled
  • Connector Type: Receptacle
  • Contact Types: Male or female
  • Fastening Type: Locking ramp
  • Row Spacing: 0.163" (4.14mm)
  • Package: Bulk
  • Standard Package: 500
  • Mounting Type: Panel mount and snap-in
  • Suitable for: Alternative parts (cross-reference)
