Same model may have multiple batches, images only for reference.

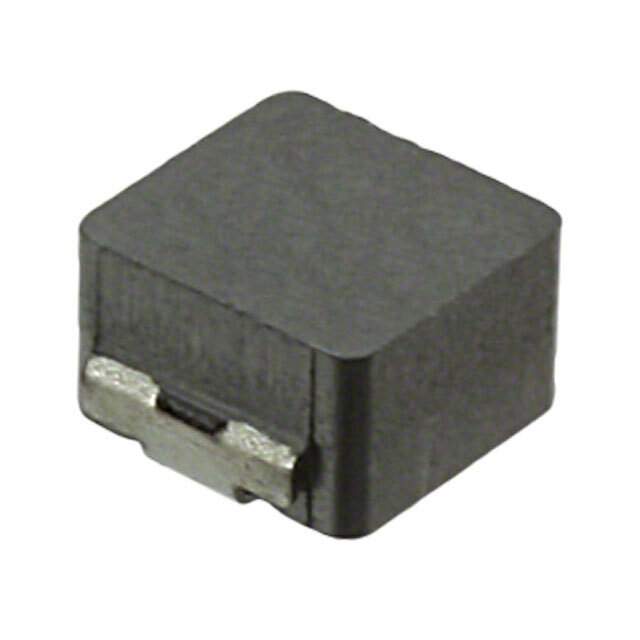

PCMB053T-R68MS Real Image
Same model may have multiple batches, images only for reference.

PCMB053T-R68MS

Part No PCMB053T-R68MS
Manufacturer Susumu
Catalog Fixed Inductors
Description FIXED IND 680NH 8.5A 12 MOHM SMD / 680 nH Unshielded Inductor 8.5 A 12mOhm Max 1919 (4848 Metric)
Datasheet
PCMB053T-R68MS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Susumu
Series PCMB
Package Tape & Reel (TR)
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 8.5 A
Current - Saturation (Isat) 14A
Shielding Unshielded
DC Resistance (DCR) 12mOhm Max
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 1919 (4848 Metric)
Dimension 0.191" L x 0.185" W (4.85mm x 4.70mm)
Height - Seated (Max) 0.110" (2.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 1,000
Win Source Part Number 1003810-PCMB053T-R68MS
Ultra Librarian 3D Model Ultra Librarian PCMB053T-R68MS CAD Model

Description

The Susumu PCMB053T-R68MS is a fixed inductor designed for surface-mount applications.

  • Manufacturer: Susumu
  • Inductor Type: Fixed
  • Mounting Type: Surface Mount
  • Inductance: 680 nH
  • Tolerance: ±20%
  • Maximum Seated Height: 0.110 inches
  • Standard Package: 1000
  • Package Type: Tape and Reel (TR)
  • Shielding: Unshielded
  • DC Resistance (DCR): 12mOhm max
  • Current Rating (Amps): 8.5A
  • Inductance Frequency-Test: 100 kHz
  • REACH Status: Unaffected
  • HTSUS: 8504.50.4000
