Same model may have multiple batches, images only for reference.

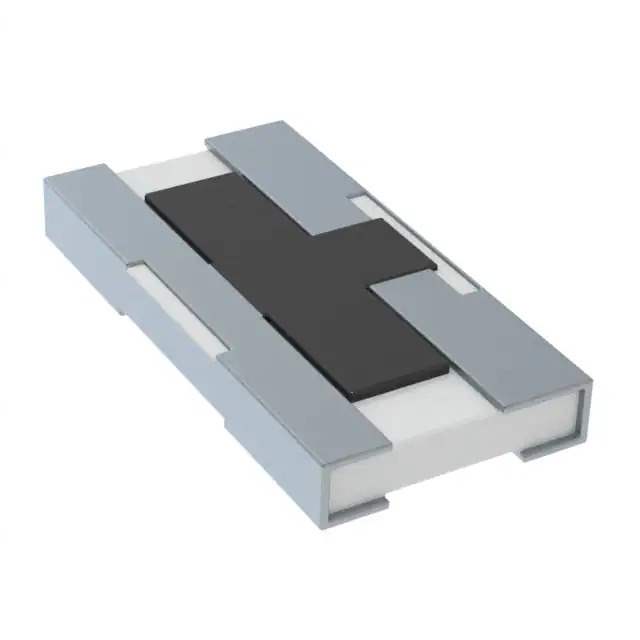

PAT1632-C-2DB-T1 Real Image
Same model may have multiple batches, images only for reference.

PAT1632-C-2DB-T1

Part No PAT1632-C-2DB-T1
Manufacturer Susumu
Catalog Attenuators
Description CHIP ATTENUATOR, 2DB, 50O, 125MW
Datasheet
PAT1632-C-2DB-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Susumu
Series PAT
Package Tape & Reel
Product Status Active
Attenuation Value 2dB
Frequency Range 0 Hz ~ 3 GHz
Power (Watts) 125mW
Impedance 50 Ohms
Package / Case 1206 (3216 Metric)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 850479-PAT1632-C-2DB-T1
Ultra Librarian 3D Model Ultra Librarian PAT1632-C-2DB-T1 CAD Model

Description

The PAT1632-C-2DB-T1 is an RF and Wireless Attenuator component designed by Susumu.

  • Series: PAT
  • Package: 1206 (3216 Metric)
  • Impedance: 50 Ohms
  • Power: 125mW
  • Frequency Range: 0 Hz to 3 GHz
  • Attenuation: 2dB
  • Packaging: Tape and Reel
  • Standard Package Quantity: 1,000 pcs
  • ECCN: EAR99
  • REACH Regulations: Unaffected
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8533.21.0020
  • Status: Active
