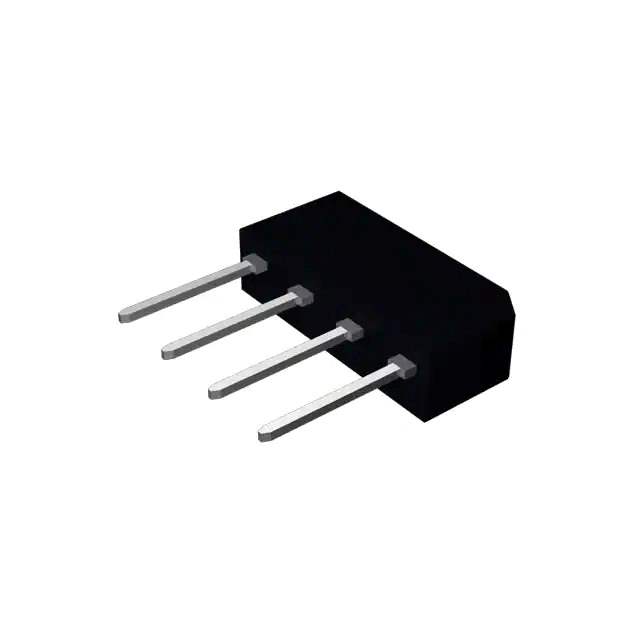

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Surge Components
Series GBL4
Package Bag
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 4 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 2 A
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN 3A001
HTSUS 8541.10.0080
Win Source Part Number 594261-GBL4J
Ultra Librarian 3D Model Ultra Librarian GBL4J CAD Model

Description

The 594261-GBL4J is a bridge rectifier diode designed for various applications. It belongs to the category of Discrete Semiconductor Products and is part of the Surge Components product line.

  • This diode comes: in a bag package, with a standard package containing 1 piece.
  • It is a single-phase diode: with an average rectified current of 4A.
  • The forward voltage @ 2A: is 1V.
  • The maximum peak reverse voltage: is 600V.
  • The mounting type: is through hole and the temperature range for operating is -55°C to 150°C.
  • The ECCN classification: for this diode is 3A001.
  • In the open market: there is a 59% threat of fake products.
  • The MSL level: is 1, which means it has unlimited moisture sensitivity.
  • The REACH status: for this product is vendor undefined.
  • The HTSUS code: for this diode is 8541.10.0080.
  • The 594261-GBL4J is an active product: and is widely used in various applications.
