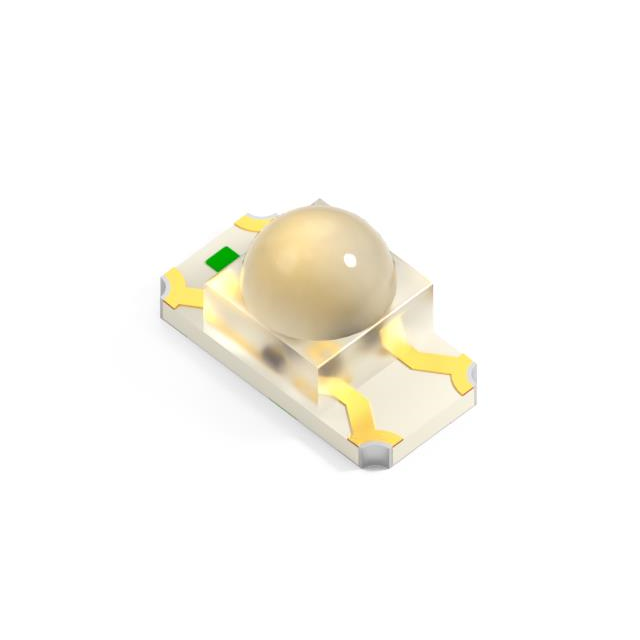

XZMDKVG55W-8 Real Image
Same model may have multiple batches, images only for reference.

XZMDKVG55W-8

Part No XZMDKVG55W-8
Manufacturer SunLED
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR CHIP SMD / Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red 1206 (3216 Metric)
Datasheet
XZMDKVG55W-8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr SunLED
Package Tape & Reel
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 248mcd Green, 397mcd Red
Lens Style Round with Domed Top
Lens Size 1.60mm Dia
Voltage - Forward (Vf) (Typ) 2.1V Green, 1.95V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 30°
Mounting SMD (SMT)
Wavelength - Dominant 570nm Green, 630nm Red
Wavelength - Peak 574nm Green, 645nm Red
Package / Case 1206 (3216 Metric)
Supplier Device Package Chip LED
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.80mm
Base Product Number XZMDKVG55
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1497-1183-6,1497-1183-1,1497-1183-2
Standard Package 2,000
Win Source Part Number 968761-XZMDKVG55W-8
Ultra Librarian 3D Model Ultra Librarian XZMDKVG55W-8 CAD Model

Description

The XZMDKVG55W-8 is a chip LED from SunLED. It has a green and red color and is packaged in tape and reel.

  • Color: Green and Red
  • Package: Tape and Reel
  • Viewing Angle: 30°
  • Millicandela Rating: 248 mcd (Green) and 397 mcd (Red)
  • Voltage Forward: 2.1 V (Green) and 1.95 V (Red) @ 20 mA
  • Supply and Demand Status: Balanced
  • Dimension: 3.20 mm L x 1.60 mm W
  • Application: Optoelectronics
