Same model may have multiple batches, images only for reference.

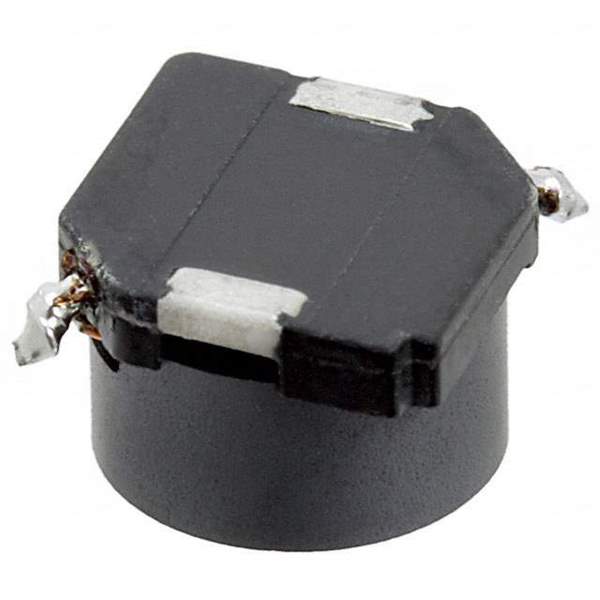

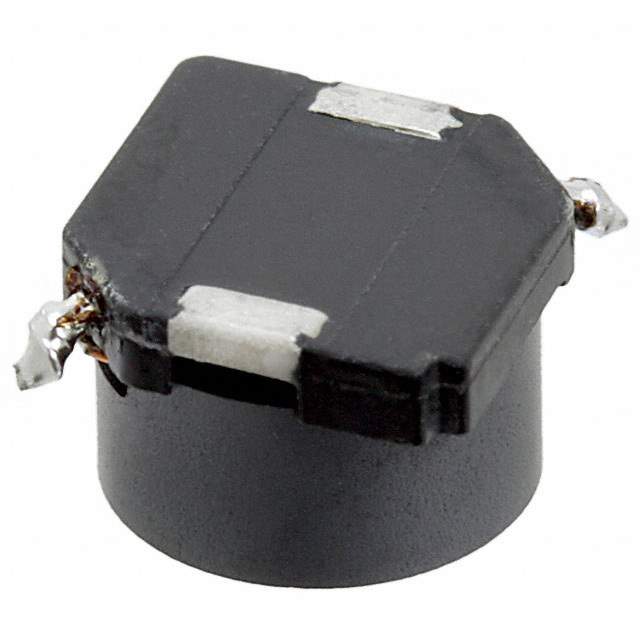

CDRR75NP-221MC Real Image
Same model may have multiple batches, images only for reference.

CDRR75NP-221MC

Part No CDRR75NP-221MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 220UH 540MA 721MOHM SM / 220 µH Shielded Inductor 540 mA 721mOhm Max Nonstandard
Datasheet
CDRR75NP-221MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Material - Core Ferrite
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 540 mA
Current - Saturation (Isat) 290mA
Shielding Shielded
DC Resistance (DCR) 721mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.272" L x 0.272" W (6.90mm x 6.90mm)
Height - Seated (Max) 0.189" (4.80mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number CDRR75NP221MC,308-1678-6,308-1678-1,308-1678-2
Standard Package 1,000
Win Source Part Number 1327640-CDRR75NP-221MC
Ultra Librarian 3D Model Ultra Librarian CDRR75NP-221MC CAD Model

Description

The CDRR75NP-221MC is a fixed inductor from Sumida America Components that is designed for use in a variety of applications.

  • Inductance: 220 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance: 721mOhm Max
  • Shielding: Shielded
  • Package: Surface Mount
  • Series: CDRR75NP
  • Compliance: RoHS3
  • Supply and Demand Status: Limited
