Same model may have multiple batches, images only for reference.

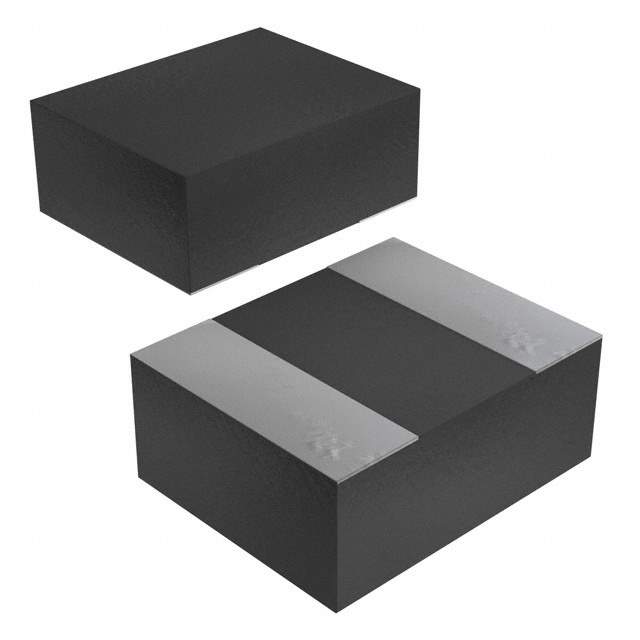

252012CDMCDDS-R68MC Real Image
Same model may have multiple batches, images only for reference.

252012CDMCDDS-R68MC

Part No 252012CDMCDDS-R68MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 680NH 5.5A 30 MOHM SMD / 680 nH Shielded Molded Inductor 5.5 A 30mOhm Max 1008 (2520 Metric)
Datasheet
252012CDMCDDS-R68MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Type Molded
Material - Core Metal Composite
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 5.5 A
Current - Saturation (Isat) 5.4A
Shielding Shielded
DC Resistance (DCR) 30mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package 1008 (2520 Metric)
Supplier Device Package 1008
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 308-2602-6,308-2602-1,308-2602-2
Standard Package 3,000
Win Source Part Number 1329337-252012CDMCDDS-R68MC
Ultra Librarian 3D Model Ultra Librarian 252012CDMCDDS-R68MC CAD Model

Description

The 1329337-252012CDMCDDS-R68MC is a molded fixed inductor from Sumida America Components Inc.

  • Manufacturer: Sumida America Components Inc.
  • Type: Molded, Fixed
  • Shielding: Shielded
  • Mounting Type: Surface Mount
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.047" (1.20mm)
  • Standard Package: 3,000
  • Tolerance: ±20%
  • Material Core: Metal Composite
  • DC Resistance (DCR): 30mOhm Max
  • Current Rating: 5.5 A
  • Saturation Current: 5.4A
  • Inductance Frequency Test: 1 MHz
  • Inductance Value: 680nH
  • Temperature Range for Operating: -55°C to 125°C
  • ECCN: EAR99
  • RoHS Status: ROHS3 compliant
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.50.8000
