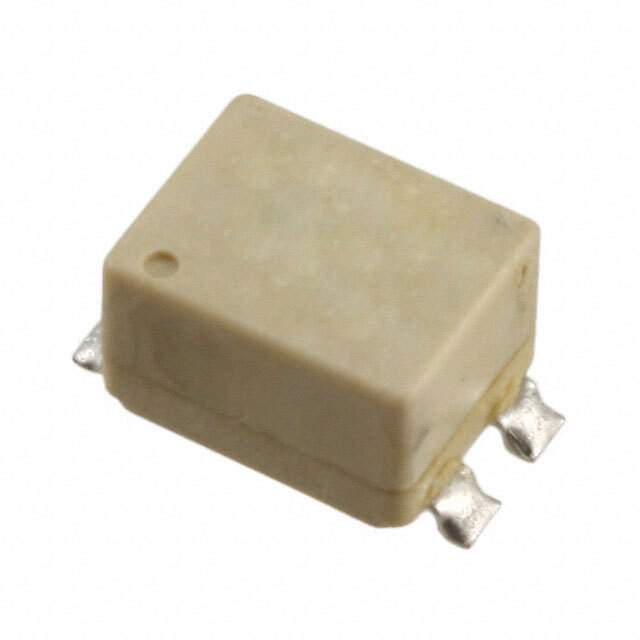

Same model may have multiple batches, images only for reference.

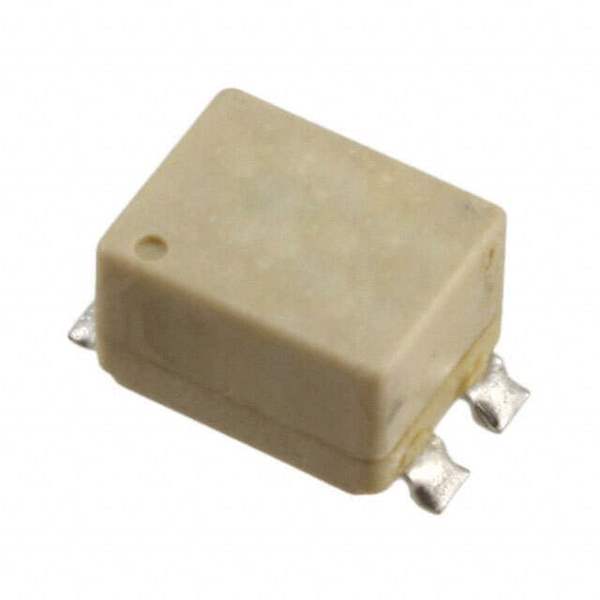

CPFC74NP-PS01H2A30 Real Image
Same model may have multiple batches, images only for reference.

CPFC74NP-PS01H2A30

Part No CPFC74NP-PS01H2A30
Manufacturer Sumida America Components Inc.
Catalog Common Mode Chokes
Description CMC 3A 2LN SMD
Datasheet
CPFC74NP-PS01H2A30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 30 Weeks
Features 2 Line Common Mode Choke Surface Mount 3A DCR 60mOhm (Typ)
Manufacturer Sumida America Components Inc.
Series CPFC
Package Reel - TR
Mounting Surface Mount
Package Vertical, 4 Gull Wing
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 308-1561-2, 308-1561-1, 308-1561-6, CPFC74NPPS01H2A30
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 867106-CPFC74NP-PS01H2A30
Ultra Librarian 3D Model Ultra Librarian CPFC74NP-PS01H2A30 CAD Model

Description

The Sumida America Components Inc. CPFC series 2 Line Common Mode Choke is a surface mountable electronic component that is perfect for filtering applications.

  • Current Rating: 3A
  • DCR: 60mOhm (Typ)
  • Efficiency: Highly efficient in reducing electromagnetic interference
  • Package: Vertical, 4 gull-wing
  • Packaging: Reel
  • Category: Filter
  • ECCN: EAR99
  • Estimated Production Lead Time: 30 weeks
  • Popularity: Medium
  • Status: Limited supply and demand
