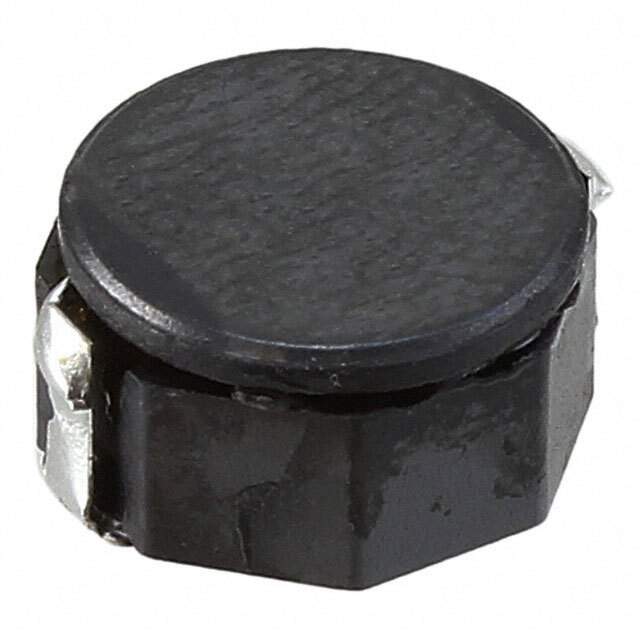

CDRH8D43HPNP-220NC Real Image
Same model may have multiple batches, images only for reference.

CDRH8D43HPNP-220NC

Part No CDRH8D43HPNP-220NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 1.5A 125 MOHM SMD
Datasheet
CDRH8D43HPNP-220NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 19 Weeks
Features Shielded - Inductor 125mOhm Max Nonstandard
Manufacturer Sumida America Components Inc.
Series CDRH8D43/HP
Package Reel - TR
Operating Temperature Range -40°C ~ 100°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 308-2144-6, 308-2144-1, 308-2144-2
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866277-CDRH8D43HPNP-220NC
Ultra Librarian 3D Model Ultra Librarian CDRH8D43HPNP-220NC CAD Model

Description

The Sumida America Components Inc. CDRH8D43HPNP-220NC is a shielded inductor with a 125mOhm maximum DC resistance.

  • Maximum DC Resistance: 125mOhm
  • Package: Nonstandard
  • Win Source Part Number: 866277-CDRH8D43HPNP-220NC
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 100°C
  • Series: CDRH8D43/HP
  • Category: Inductors
  • Quantity per Package: 500
  • Estimated Production Lead Time: 19 weeks
