Same model may have multiple batches, images only for reference.

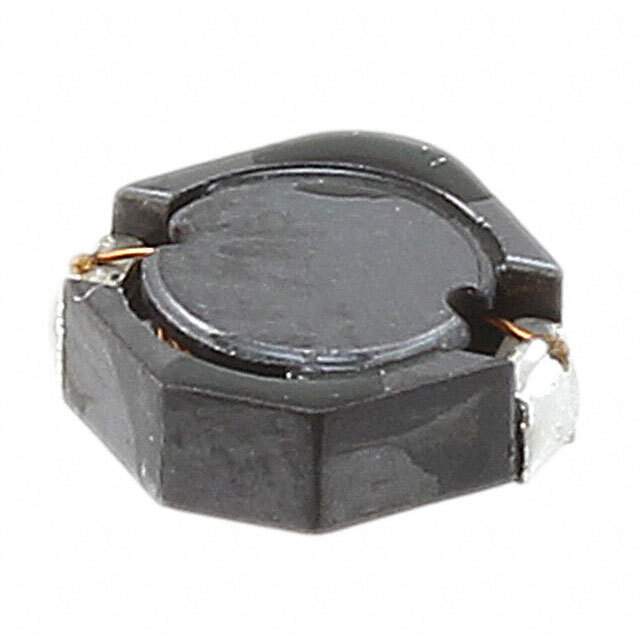

CDRH4D18CLDNP-4R7PC Real Image
Same model may have multiple batches, images only for reference.

CDRH4D18CLDNP-4R7PC

Part No CDRH4D18CLDNP-4R7PC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description SMD Power Inductor
Datasheet
CDRH4D18CLDNP-4R7PC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH4D18C
Packaging Reel - TR
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±25%
Current Rating 2A
Current - Saturation 900mA
Shielding Shielded
DC Resistance (DCR) 61 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Win Source Part Number 1160847-CDRH4D18CLDNP-4R7PC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Limited
Family Name CDRH4D18C/LD
Introduction Date November 19, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDRH4D18CLDNP-4R7PC CAD Model

Description

The CDRH4D18CLDNP-4R7PC is a surface mount power inductor manufactured by Sumida America Components Inc.

  • Current Rating: 2A
  • Inductance: 4.7μH
  • Tolerance: ±25%
  • Family: CDRH4D18C/LD
  • Shielded: Yes
