Same model may have multiple batches, images only for reference.

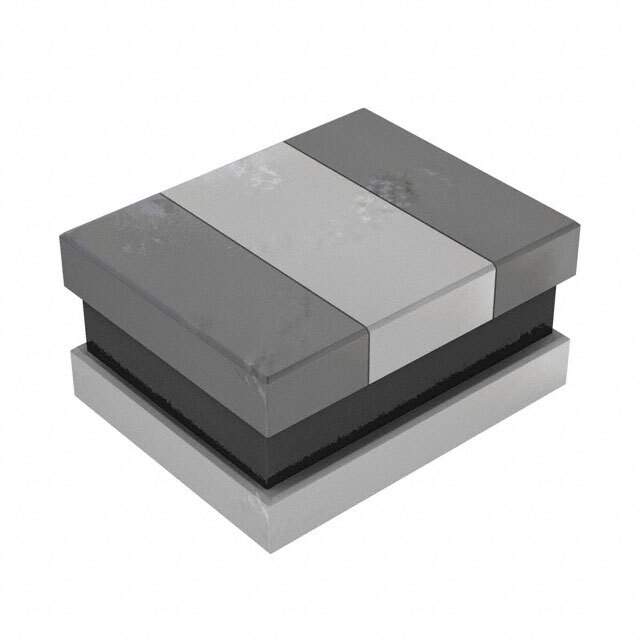

SRN2012-2R2M Real Image
Same model may have multiple batches, images only for reference.

SRN2012-2R2M

Part No SRN2012-2R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN2012-2R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN2012
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 1.6A
Shielding Semi-Shielded
DC Resistance (DCR) 186mOhm Max
Q @ Freq 13 @ 1MHz
Frequency - Self Resonant 70MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRN2012
Other Names SRN2012-2R2MCT,SRN2012-2R2MTR,SRN2012-2R2MDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274420-SRN2012-2R2M
Ultra Librarian 3D Model Ultra Librarian SRN2012-2R2M CAD Model

Description

The Bourns Inc. SRN2012-2R2M is a drum core, wirewound inductor that has a semi-shielded shielding.

  • Series: SRN2012
  • Height: 0.047 inches when seated
  • Inductance: 2.2 microhenry
  • Tolerance: +/- 20 percent
  • Core Material: Ferrite
  • DC Resistance: 186 milliohm maximum
  • Current Rating: 1.3 A
  • Frequency of Self-Resonant: 70 MHz
