Same model may have multiple batches, images only for reference.

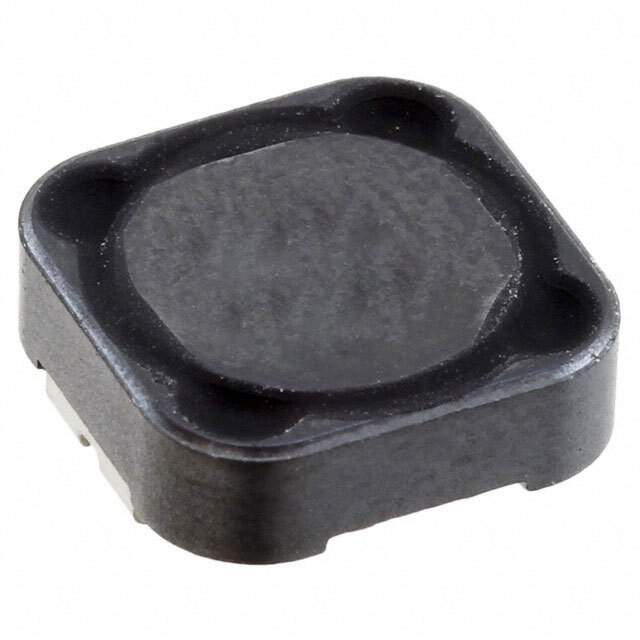

CDRH124NP-4R7MC Real Image
Same model may have multiple batches, images only for reference.

CDRH124NP-4R7MC

Part No CDRH124NP-4R7MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 5.7A 18 MOHM SMD
Datasheet
CDRH124NP-4R7MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 5.7A
DC Resistance (DCR) 18 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.177" (4.50mm)
Win Source Part Number 013054-CDRH124NP-4R7MC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH124NP-4R7MC CAD Model

Description

CDRH124NP-4R7MC Power Inductor

The CDRH124NP-4R7MC is a high-efficiency power inductor that meets the stringent demands of modern electronic circuits. Its small size and high performance make it suitable for today’s compact and energy-conscious designs.

Applications/Projects:

  • Mobile electronic devices
  • Battery-operated equipment
  • RF applications
  • Power supply modules

Features and Benefits:

  • High saturation current resilience
  • Low core loss leading to increased efficiency
  • Rugged construction for durability

The CDRH124NP-4R7MC is engineered to provide designers with flexibility and performance, making it a pivotal component in optimizing electronics for better reliability and efficiency.
