Same model may have multiple batches, images only for reference.

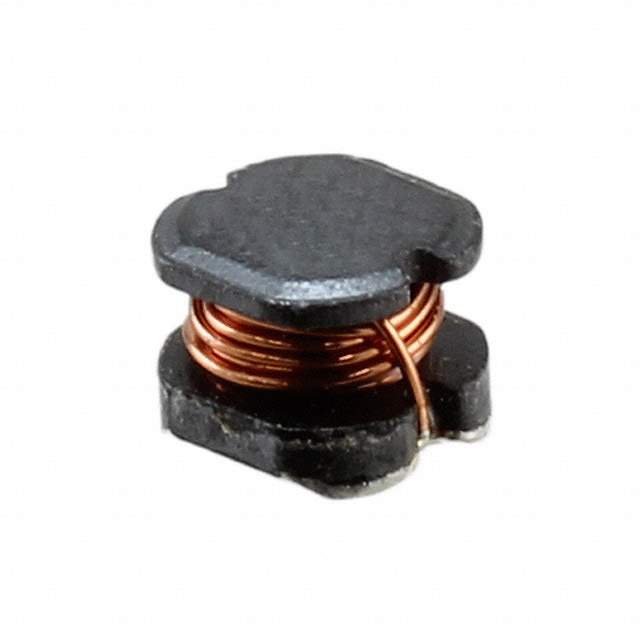

CD43NP-3R9MC Real Image
Same model may have multiple batches, images only for reference.

CD43NP-3R9MC

Part No CD43NP-3R9MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 3.9UH 1.84A 93.7 MOHM / 3.9 µH Unshielded Inductor 1.84 A 93.7mOhm Max Nonstandard
Datasheet
CD43NP-3R9MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CD43
Package Tape & Reel
Material - Core Ferrite
Inductance 3.9 µH
Tolerance ±20%
Current Rating (Amps) 1.84 A
Shielding Unshielded
DC Resistance (DCR) 93.7mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 7.96 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.138" (3.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 308-1857-1,308-1857-6,308-1857-2
Standard Package 1,500
Win Source Part Number 968530-CD43NP-3R9MC
Ultra Librarian 3D Model Ultra Librarian CD43NP-3R9MC CAD Model

Description

The Sumida America Components Inc. CD43NP-3R9MC is a fixed inductor with an unshielded design.

  • Inductance: 3.9 µH
  • Maximum DC Resistance: 93.7mOhm
  • Package: tape and reel
  • Mounting: surface mount technology
  • Temperature Range: -40°C to 100°C
  • Tolerance: ±20%
  • Core Material: ferrite
  • MSL level: 1 (unlimited)
