Same model may have multiple batches, images only for reference.

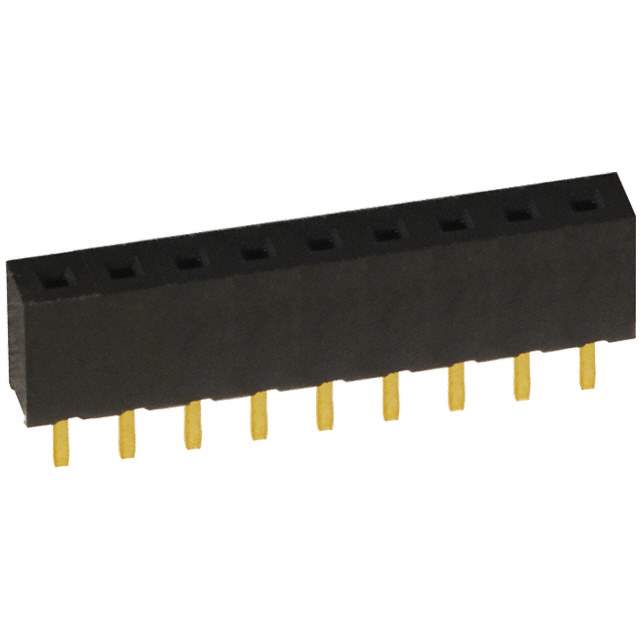

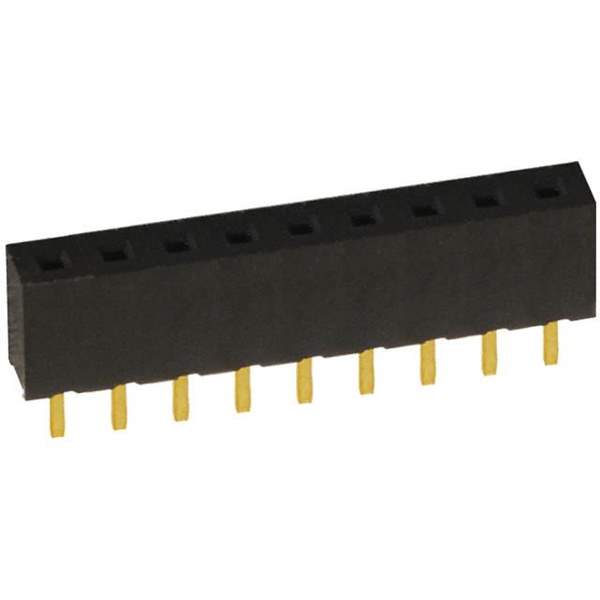

NPPN091BFCN-RC

Name: NPPN091BFCN-RC
Brand: Sullins Connector Solutions
SKU: 1383055
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NPPN091BFCN-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HDR 9POS 0.079 GOLD PCB / 9 Position Header Connector 0.079" (2.00mm) Through Hole Gold
Datasheet	NPPN091BFCN-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Mfr	Sullins Connector Solutions
Series	-
Package	Tube
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	9
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	1
Row Spacing - Mating	-
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.173" (4.40mm)
Contact Length - Post	0.094" (2.40mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Mated Stacking Heights	-
Ingress Protection	-
Features	-
Current Rating (Amps)	2A
Voltage Rating	-
Applications	-
Insulation Material	Polyamide (PA6T), Nylon 6T
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	Flash
Base Product Number	NPPN091
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1 pcs
Win Source Part Number	1383055-NPPN091BFCN-RC
Ultra Librarian 3D Model	Ultra Librarian NPPN091BFCN-RC CAD Model

Alternative Products

Description

The 1383055-NPPN091BFCN-RC is a header connector designed for through-hole mounting. It is manufactured by Sullins Connector Solutions, a trusted supplier in the industry.

Positions: 9
Contact Type: Female Socket
Contact Material: Phosphor Bronze
Contact Finish: Gold
Current: 2A
Temperature Range: -40°C to 105°C
Package: Tube
Insulation Color: Black
Insulation Materials: Polyamide (PA6T) and Nylon 6T
Application: Board-to-Board
