Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Bulk
Status Active
Triac Type Logic - Sensitive Gate
Voltage - Off State 800V
Current - On State (It (RMS)) (Max) 4A
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) 20A, 21A
Current - Gate Trigger (Igt) (Max) 10mA
Current - Hold (Ih) (Max) 10mA
Configuration Single
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting Through Hole

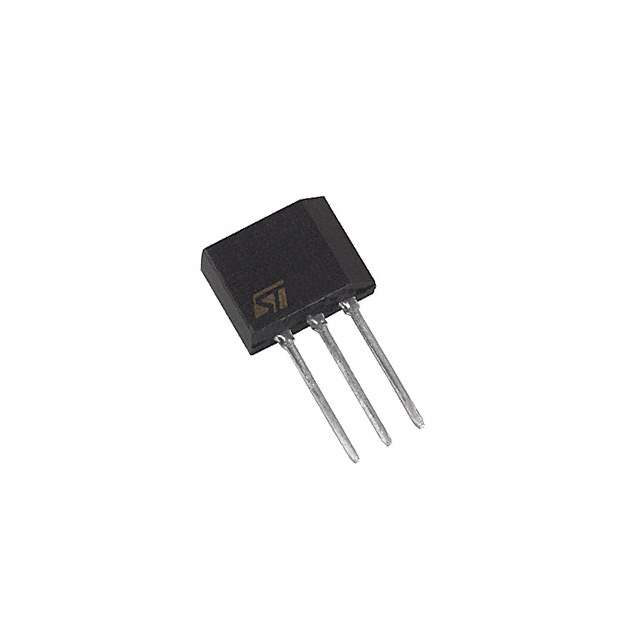

Case / Package TO-202
Win Source Part Number 119353-Z0409NF 1AA2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name Z0409NF
Introduction Date October 15, 2001
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian Z0409NF 1AA2 CAD Model

Description

Z0409NF 1AA2 from STMicroelectronics is a triac intended for AC power control and switching applications where compact, cost-effective control of mains-connected loads is required. Devices in this category are commonly considered for lamp dimmers, small appliance controls, fan regulators, heating control circuits, and general-purpose switching stages in consumer and industrial electronics. Engineers often choose STMicroelectronics triacs for established market presence, broad design familiarity, and suitability for phase-control or on/off AC load management. For procurement and design planning, the lifecycle status for Z0409NF 1AA2 is currently information not available, so teams should confirm availability directly with the manufacturer or authorized distribution before committing to new designs. RoHS compliance information is also not available in the provided data. Compliance-sensitive programs should verify the latest material declarations, RoHS statements, and datasheet details through official STMicroelectronics documentation before release to production.
