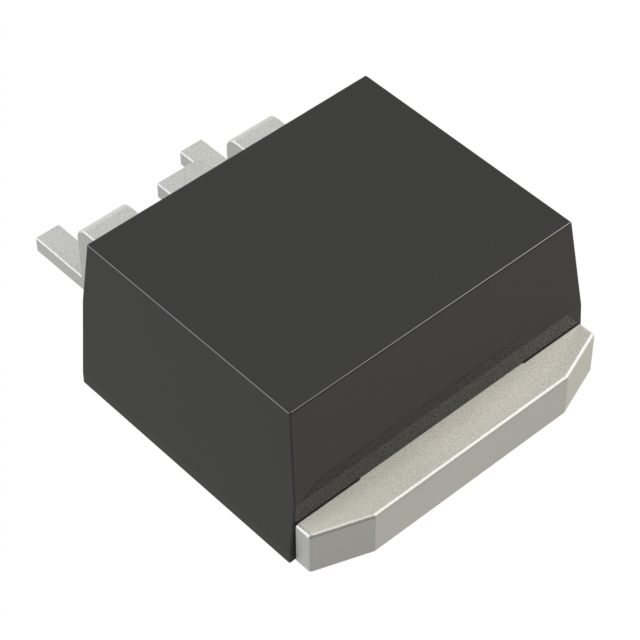

Same model may have multiple batches, images only for reference.
ACS108-8SA-AP STMicroelectronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ACS108-8SA-AP

Part No ACS108-8SA-AP
Manufacturer STMicroelectronics
Catalog Triacs
Description TRIAC SENS GATE 800V 0.45A TO92
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Last Time Buy
Triac Type Logic - Sensitive Gate
Voltage - Off State 800 V
Current - On State (It (RMS)) (Max) 450 mA
Voltage - Gate Trigger (Vgt) (Max) 1 V
Current - Non Rep. Surge 50, 60Hz (Itsm) 13A, 13.7A
Current - Gate Trigger (Igt) (Max) 10 mA
Current - Hold (Ih) (Max) 10 mA
Configuration Single
Temperature Range - Operating -30°C ~ 125°C (TJ)
Mounting Type Through Hole
Case / Package TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package TO-92
Package Cut Tape (CT)
Supply and Demand Status Normal
Win Source Part Number 1494399-ACS108-8SA-AP
Ultra Librarian 3D Model Ultra Librarian ACS108-8SA-AP CAD Model

Description

N
