The VNQ6040S-E from STMicroelectronics is a state-of-the-art automotive-grade Quad Channel High-Side Driver designed to drive resistive, inductive, and capacitive loads. This robust device is particularly suited for applications that require high reliability and performance, such as automotive environments where it can control various actuators, lights, and other loads.

Key Features

• Multiple Channel Control: With four independent high-side drivers, the VNQ6040S-E can control multiple loads with a single chip, simplifying design and reducing component count.
• High Output Current: Each channel can deliver up to 6A continuous current, making it capable of driving a wide range of loads.
• Integrated Diagnostics: The device includes diagnostic features that provide feedback on load status, open load detection, and thermal shutdown, enhancing system reliability.
• Over-Temperature Protection: Built-in thermal shutdown protects the device and the load in the event of over-temperature conditions.
• Low Standby Current: Its low standby current consumption helps in reducing the overall energy consumption of the application, making it suitable for battery-powered systems.

Applications

The VNQ6040S-E is designed for a variety of applications, including but not limited to:

• Automotive interior or exterior lighting
• Automotive motor control applications
• Control of different resistive loads in the vehicle

Quality and Reliability

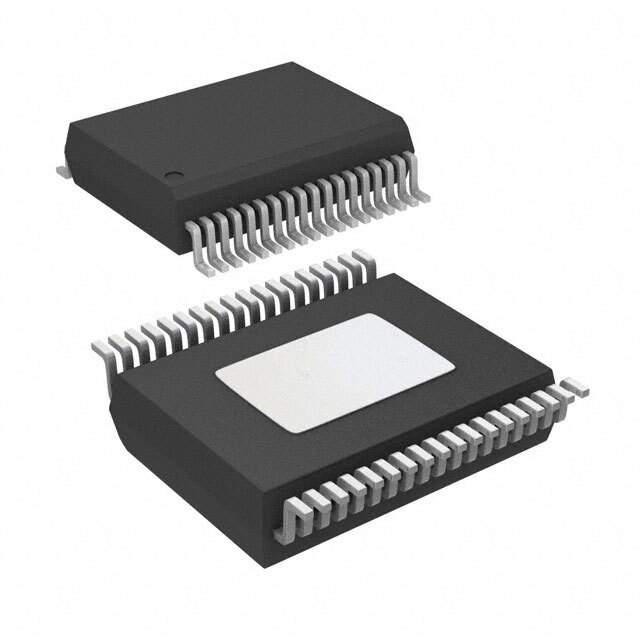

STMicroelectronics ensures that the VNQ6040S-E meets the stringent requirements of automotive applications. The device is qualified under AEC-Q100, which guarantees the robustness and quality necessary for automotive electronics. Furthermore, the VNQ6040S-E comes in a PowerSSO-36 package, which provides excellent thermal performance and space-saving on the PCB.

With its combination of high performance, integrated diagnostics, and protection features, the VNQ6040S-E is an excellent choice for designers looking for a reliable and efficient solution to drive high-side loads in automotive and industrial applications.
