STMicroelectronics VNQ05XSP1613TR - High-Efficiency Quad Channel High-Side Driver

The VNQ05XSP1613TR from STMicroelectronics is a cutting-edge automotive-grade quad channel high-side driver, designed to deliver robust performance for driving resistive, inductive, and capacitive loads. This device is part of the VIPower M0-5 family, which is well-known for its reliability and efficiency in high-power applications.

Each of the four channels of the VNQ05XSP1613TR can independently drive loads with currents up to 5A. The device is equipped with an array of features aimed at ensuring the protection and longevity of both the driver and the load. These include over-current protection, over-temperature protection, load-dump protection, and an active VCC clamp, which provides energy-efficient operation by minimizing power dissipation.

The VNQ05XSP1613TR is also designed with an integrated current-sensing feature that allows the monitoring of the load current for diagnostic purposes. This is particularly useful in applications where feedback and system monitoring are critical for performance and safety. The device's status feedback includes open load in OFF-state, output short to VCC, over-temperature shutdown, and over-current shutdown, providing comprehensive diagnostic capabilities.

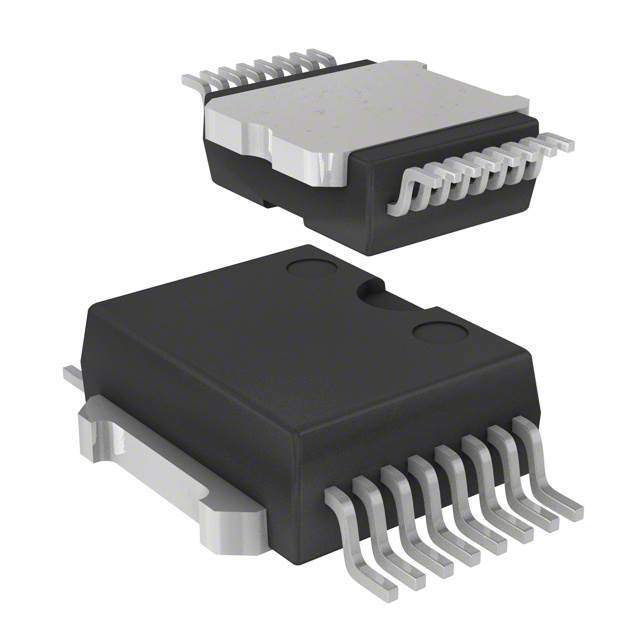

With a wide operating voltage range from 5.5V to 36V, the VNQ05XSP1613TR is versatile and can be used in a wide array of automotive applications, including but not limited to, lamp driving, fan motors, and resistive heaters. Its PowerSSO-36 package ensures a compact footprint while offering excellent thermal performance, crucial for maintaining stability and functionality in the high-temperature environments typically found in automotive applications.

The VNQ05XSP1613TR is designed for direct operation in a 12V vehicle electrical system, and it's compliant with the ISO 7637-2 and ISO 16750-2 standards for transient protection, making it an ideal choice for robust and reliable operation in the demanding automotive environment.

As a product of STMicroelectronics, a global semiconductor leader, the VNQ05XSP1613TR benefits from the company's commitment to innovation and quality, ensuring that it meets the stringent requirements of automotive industry standards.
