Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tube
Status Obsolete
Switch Type General Purpose
Number of Outputs 2
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Load Voltage (V) 5.5V ~ 36V
Supply Voltage Not Required
Current - Output (Maximum) 3.5A
Rds On 160mOhm (Maximum)
Input Type Non-Inverting
Features Auto Restart, Status Flag
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating -40°C ~ 150°C

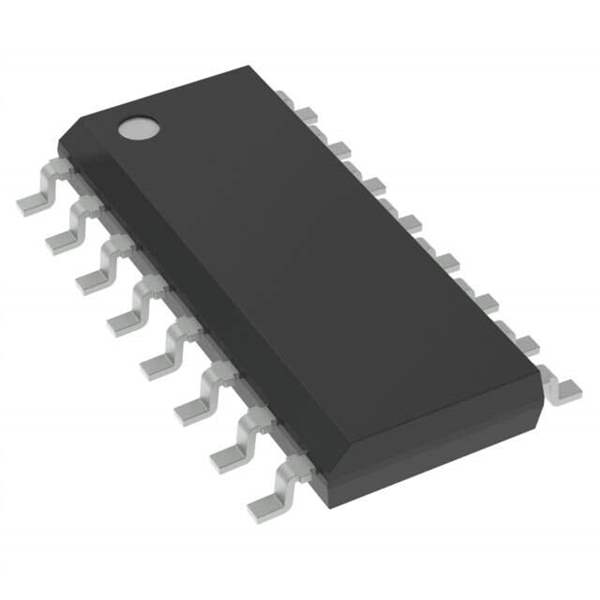

Manufacturer Package 16-SOIC
Supplier Device Package 16-SO
Family Part Number VND810
Manufacturer Pack Quantity 50
MSL Level 3 (168 Hours)
Win Source Part Number 1279613-VND810
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VND810 CAD Model

Description

STMicroelectronics VND810: High-Side Driver

The VND810 from STMicroelectronics is an advanced high-side driver, designed to control automotive applications by providing the ability to drive high current loads with a high degree of flexibility and efficiency. This device is part of ST's VIPower family and is especially suited for driving resistive or inductive loads with one side connected to ground.

The VND810 utilizes ST's proprietary VIPower technology to achieve an optimal integration of the power MOSFET with intelligent control and protection circuitry. The result is a robust, compact, and intelligent solution for advanced automotive power management applications, including but not limited to, headlamps, heaters, motors, and solenoids.

The device is capable of handling load currents up to 25A with an operating voltage range from 5.5V to 36V, which covers the requirements of most 12V automotive systems. It also includes features such as load current limitation, overtemperature shutdown, and active clamp to protect both the load and the driver from overcurrent and overvoltage conditions.

One of the standout features of the VND810 is its diagnostic feedback capability, which communicates the status of the driver to a microcontroller, making it easier to implement fault handling routines. This diagnostic feedback includes open-load detection in the off-state, output short to Vcc, overtemperature, and overcurrent protection.

The VND810 is available in a PowerSSO-24 package, which is designed to provide efficient heat dissipation and reduce the thermal resistance between the chip and the heatsink. This packaging, coupled with the device's inherent protection features, ensures high reliability and longevity of the driver even in harsh automotive environments.

In summary, the VND810 from STMicroelectronics is a high-performance, feature-rich high-side driver that offers automotive designers a reliable and efficient solution for controlling power-hungry applications. Its advanced protection features, diagnostic capabilities, and robust design make it an ideal choice for modern automotive systems.
